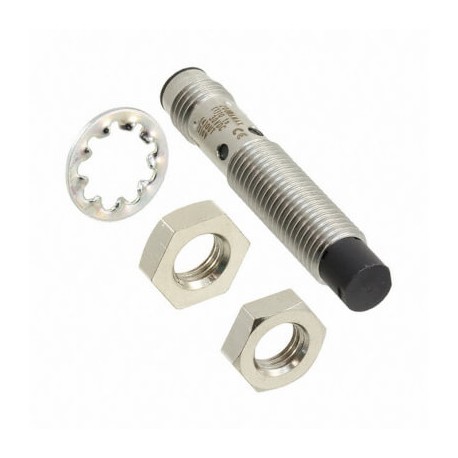

OMRON E2B-S08KN04-MC-B1 E2B-S08KN04-MC-B1 E2B 2080M E2BS08KN04MCB1OMI OMRON Inductive Inox M8 enr 4mm 3h PNP NA Connector M8 Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08KN04-MC-B1 E2B 2080M E2BS08KN04MCB1OMI OMRON Inductive Inox M8 enr 4mm 3h PNP NA Connector M8 Lite

E2B-S08KN04-MC-B1

E2B 2080M

E2BS08KN04MCB1OMI

OMRON

1 Pcs.

Inductive Inox M8 enr 4mm 3h PNP NA Connector M8 Lite Proximity sensor, inductive, stainless steel, short body, M8, unshielded, 4 mm, DC, 3-wire, PNP NO, M8 connector 3 pins

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from durable metal housing, the Omron inductive Inox M8 enr 4mm 3h PNP NA connector M8 Lite (E2B-S08KN04-MC-B1) serves as a precision proximity sensor for automated detection tasks. Industrial plants utilize robust cylindrical sensors to track metallic components, manage conveyor flows, and ensure accurate machine timing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M8
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M8 - 3 pinMaterial housingStainless steelCable specifications-Overall length of sensor44 mmThread length21 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
