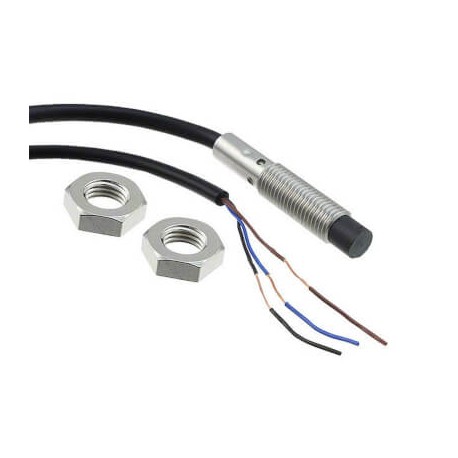

OMRON E2B-S08KN02-WP-B1 2M E2B-S08KN02-WP-B1 2M E2B 2024R E2BS08KN02WPB12MOMI OMRON Inductive Inox M8 enr 2mm 3h PNP NA Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-S08KN02-WP-B1 2M E2B 2024R E2BS08KN02WPB12MOMI OMRON Inductive Inox M8 enr 2mm 3h PNP NA Cable 2m Lite

E2B-S08KN02-WP-B1 2M

E2B 2024R

E2BS08KN02WPB12MOMI

OMRON

1 Pcs.

Inductive Inox M8 enr 2mm 3h PNP NA Cable 2m Lite Proximity sensor, LITE, inductive, stainless steel, short body, M8, unshielded, 2 mm, DC, 3-wire, PNP-NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E2B-S08KN02-WP-B1 2M E2B 2024R E2BS08KN02WPB12MOMI OMRON Inductive Inox M8 enr 2mm 3h PNP NA Cable 2m Lite acts as a precision inductive proximity sensor deployed in confined machinery spaces to detect metallic targets. It delivers consistent switching signals for automated counting and alignment functions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM8Mounting typeNon-flushSensing distance2 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor42 mmThread length21 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
