OMRON E2B-M30LS15-WP-B1 2M E2B-M30LS15-WP-B1 2M E2B 2248R E2BM30LS15WPB12MOMI OMRON Inductive M30 Long Flush 15mm 3h PNP NA Cable 2m Li.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M30LS15-WP-B1 2M E2B 2248R E2BM30LS15WPB12MOMI OMRON Inductive M30 Long Flush 15mm 3h PNP NA Cable 2m Li..

E2B-M30LS15-WP-B1 2M

E2B 2248R

E2BM30LS15WPB12MOMI

OMRON

1 Pcs.

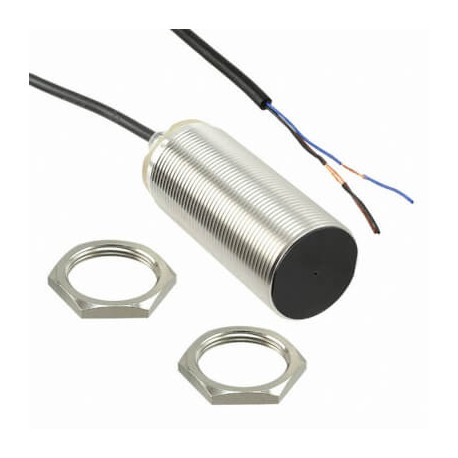

Inductive M30 Long Flush 15mm 3h PNP NA Cable 2m Lite Proximity sensor, LITE, inductive, nickel-brass, long body, M30, shielded, 15 mm, DC, 3-wire, PNP-NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive M30 sensor provides dependable non-contact position sensing and motion control inputs for high-speed manufacturing machinery and assembly cells. System builders utilize these threaded metal proximity devices to reliably detect metal components and interface directly with industrial control logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 30 mm

More info

▲
SizeM30Mounting typeQuasi-flushSensing distance15 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor82 mmThread length63 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
