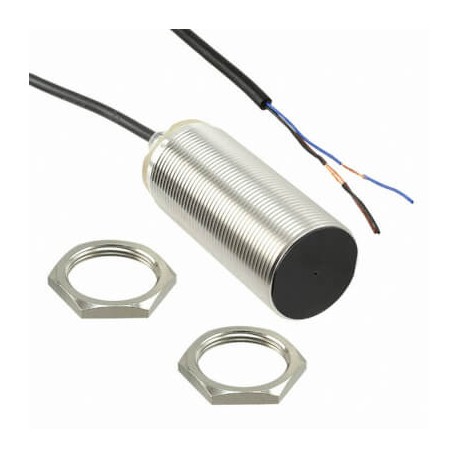

OMRON E2B-M30LS10-WP-B2 2M E2B-M30LS10-WP-B2 2M E2B 2202M E2BM30LS10WPB22MOMI OMRON Inductive M30 Long Strips 10mm 3h PNP NC Cable 2m L.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M30LS10-WP-B2 2M E2B 2202M E2BM30LS10WPB22MOMI OMRON Inductive M30 Long Strips 10mm 3h PNP NC Cable 2m L..

E2B-M30LS10-WP-B2 2M

E2B 2202M

E2BM30LS10WPB22MOMI

OMRON

1 Pcs.

Inductive M30 Long Strips 10mm 3h PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, long body, M30, shielded, 10 mm, DC, 3-wire, PNP-NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-M30LS10-WP-B2 2M E2B 2202M E2BM30LS10WPB22MOMI inductive M30 long strips 10mm 3h PNP NC cable 2m L serves as a reliable automation sensor designed for detecting metallic targets in industrial manufacturing applications. This device category is standard across machine building for non-contact position verification and process monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 30 mm
  • Switching distance (EF003647): 10 mm

More info

▲
SizeM30Mounting typeFlushSensing distance10 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor82 mmThread length63 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
