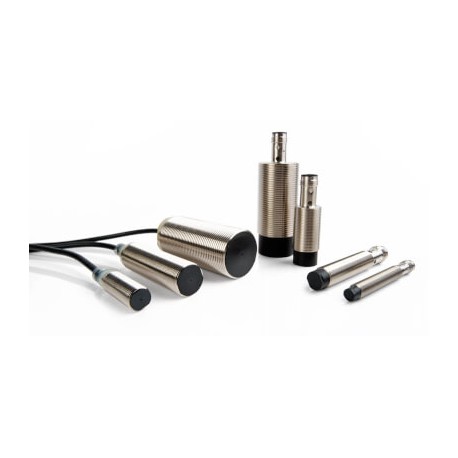

OMRON E2B-M30KS10-WP-C2 2M E2B-M30KS10-WP-C2 2M E2B 2366C E2BM30KS10WPC22MOMI OMRON Inductive M30 Flush 10 mm 3h NPN NC Cable 2m Lite

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M30KS10-WP-C2 2M E2B 2366C E2BM30KS10WPC22MOMI OMRON Inductive M30 Flush 10 mm 3h NPN NC Cable 2m Lite

Name: E2B-M30KS10-WP-C2 2M E2B 2366C E2BM30KS10WPC22MOMI OMRON Inductive M30 Flush 10 mm 3h NPN NC Cable 2m Lite
Brand: OMRON
SKU: E2B 2366C

Reference: E2B-M30KS10-WP-C2 2M

Code: E2B 2366C

Catalog Number: E2BM30KS10WPC22MOMI

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Inductive M30 Flush 10 mm 3h NPN NC Cable 2m Lite

Categories:
Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Features

The ideal solution for standard industrial environments

Thanks to the simple construction and Omron’s innovative “hot melt” production process, the E2B sensors embody two characteristics: value-for-money and high reliability.

All-round-visible indicator
The laser printed part number
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
Operating temperature: -25°C to 70°C
Water resistance: IP67

Ordering information

Pre-wired

Size			Sensing distance	Output configuration	Order code (for pre-wired types with 2 m PVC cable)
Size			Sensing distance	Output configuration	Operation mode NO	Operation mode NC
M8	⬛	−	2.0 mm	PNP1	E2B-S08KS02-WP-B1 2M2	E2B-S08KS02-WP-B2 2M2
M8	−	⬛	4.0 mm	PNP1	E2B-S08KN04-WP-B1 2M2	E2B-S08KN04-WP-B2 2M2
M12	⬛	−	4.0 mm	PNP1	E2B-M12KS04-WP-B1 2M	E2B-M12KS04-WP-B2 2M
M12	−	⬛	8.0 mm	PNP1	E2B-M12KN08-WP-B1 2M	E2B-M12KN08-WP-B2 2M
M18	⬛	−	8.0 mm	PNP1	E2B-M18KS08-WP-B1 2M	E2B-M18KS08-WP-B2 2M
M18	−	⬛	16.0 mm	PNP1	E2B-M18KN16-WP-B1 2M	E2B-M18KN16-WP-B2 2M
M30	⬛	−	15.0 mm	PNP1	E2B-M30KS15-WP-B1 2M	E2B-M30KS15-WP-B2 2M
M30	−	⬛	30.0 mm	PNP1	E2B-M30LN30-WP-B1 2M	E2B-M30LN30-WP-B2 2M

Connector types

Size			Sensing distance	Output configuration	Order code
Size			Sensing distance	Output configuration	Operation mode NO	Operation mode NC
M8	⬛	−	2.0 mm	PNP1	E2B-S08KS02-MC-B12	E2B-S08KS02-MC-B22
M8	−	⬛	4.0 mm	PNP1	E2B-S08KN04-MC-B12	E2B-S08KN04-MC-B22
M12	⬛	−	4.0 mm	PNP1	E2B-M12KS04-M1-B1	E2B-M12KS04-M1-B2
M12	−	⬛	8.0 mm	PNP1	E2B-M12KN08-M1-B1	E2B-M12KN08-M1-B2
M18	⬛	−	8.0 mm	PNP1	E2B-M18KS08-M1-B1	E2B-M18KS08-M1-B2
M18	−	⬛	16.0 mm	PNP1	E2B-M18KN16-M1-B1	E2B-M18KN16-M1-B2
M30	⬛	−	15.0 mm	PNP1	E2B-M30KS15-M1-B1	E2B-M30KS15-M1-B2
M30	−	⬛	30.0 mm	PNP1	E2B-M30LN30-M1-B1	E2B-M30LN30-M1-B2

Optional features

Refer to complete datasheet or contact your OMRON representative for the below optional features

Sensing module and body

−Single sensing distance (ideal for compatibility with previous machine generations)

−Long body (ideal for mounting through thicker constructions)

Connection

−M8 3-pin -MC e.g. E2B-S08KS02-MC-B1

Output

−200 mA max. load current

Specifications

(Exemplary for shielded versions.)

Item		M8	M12	M18	M30
Item		E2B-S08KS	E2B-M12KS	E2B-M18KS	E2B-M30KS
Sensing distance		2 mm±10%	4 mm±10%	8 mm±10%	15 mm±10%
Response frequency		1,500 Hz	1,000 Hz	500 Hz	250 Hz
Power supply voltage (operating voltage)		12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)
Protective circuits		Output reverse polarity protection, Power source circuit reverse polarity protection
Ambient temperature	Operating and storage	−25 to 70°C
Degree of protection		IP67 after IEC 60529
Material	Case	Stainless steel	Brass-nickel plated
Material	Sensing surface	PBT

1.NPN models are available. For ordering replace “-B1” or “-B2” by “-C1” or “-C2”.

2.M8 sized housings are only available in stainless steel (SUS 303).
