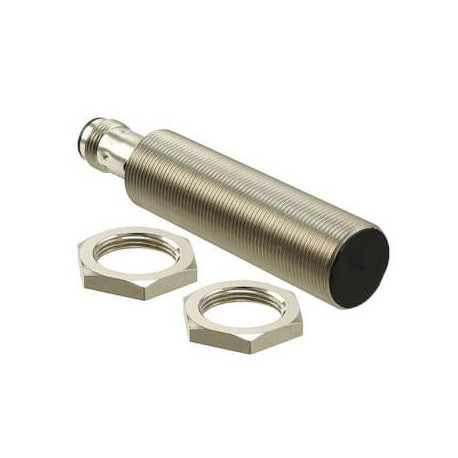

OMRON E2B-M18LS05-M1-B1 E2B-M18LS05-M1-B1 E2B 2284E E2BM18LS05M1B1OMI OMRON Inductive M18 Long Strips 5mm 3h PNP NA Connector M12 Li.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18LS05-M1-B1 E2B 2284E E2BM18LS05M1B1OMI OMRON Inductive M18 Long Strips 5mm 3h PNP NA Connector M12 Li..

E2B-M18LS05-M1-B1

E2B 2284E

E2BM18LS05M1B1OMI

OMRON

1 Pcs.

Inductive M18 Long Strips 5mm 3h PNP NA Connector M12 Lite Proximity sensor, inductive, nickel-brass, long body, M18, shielded, 5 mm, DC, 3-wire, PNP NO, M12 connector

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron inductive sensor is a cylindrical hardware component engineered to detect metallic objects without mechanical wear. Engineers routinely install such sensors in industrial machinery for precise motion control, cycle counting, and limit sensing applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Coating housing: Nickel-plated
  • Mechanical mounting condition for sensor: Concise
  • Type of actuation: Metallic Target
  • Type of switch function: Normally open contact
  • Type of electric connection: Connector M12
  • Housing material: Metal
  • Type of switching output: PNP
  • Cascadable: Yes
  • Compression-resistant: No
  • Suitable for safety functions: No
  • Number of protected contact energized outputs: 0
  • Number of protected semiconductor outputs: 0
  • Diameter sensor: 18 mm
  • Switching distance: 5 mm

More info

▲
SizeM18Mounting typeFlushSensing distance5 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingBrass, nickel platedCable specifications-Overall length of sensor81 mmThread length61 mmDegree of protection (IP)IP67
