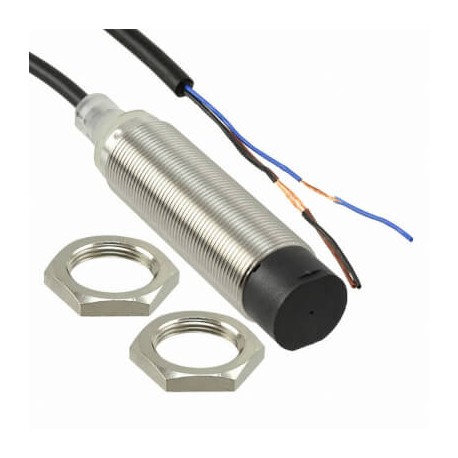

OMRON E2B-M18LN16-WP-B2 2M E2B-M18LN16-WP-B2 2M E2B 2350G 674462 OMRON Inductive M18 Long No enr 16mm 3h PNP NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18LN16-WP-B2 2M E2B 2350G 674462 OMRON Inductive M18 Long No enr 16mm 3h PNP NC Cable 2m Lite

E2B-M18LN16-WP-B2 2M

E2B 2350G

E2BM18LN16WPB22MOMI

OMRON

1 Pcs.

Inductive M18 Long, Non-enr 16mm 3h PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, long body, M18, unshielded, 16 mm, DC, 3-wire, PNP-NC, 2 m Prewired

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2B-M18LN10-WP-B2 2M inductive proximity sensor is utilized in industrial machinery for reliable metal detection, limit sensing, and motion monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 16 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Cable
  • Material housing: Brass, nickel plated
  • Cable specifications: PVC
  • Cable length: 2 m
  • Overall length of sensor: 78 mm
  • Thread length: 48 mm
  • Degree of protection (IP): IP67
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Output typePNP
Operation modeNC
Connection methodCable
Material housingBrass, nickel plated
Cable specificationsPVC
Cable length2 m
Overall length of sensor78 mm
Thread length48 mm
Degree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
