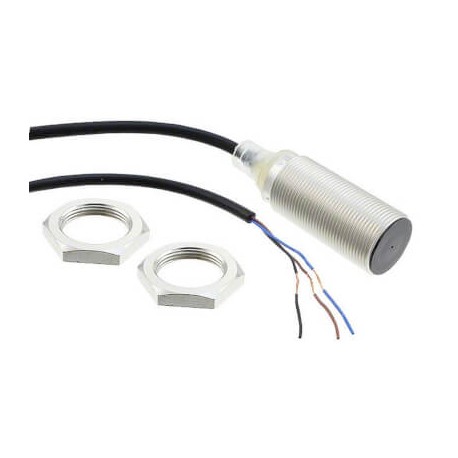

OMRON E2B-M18KS08-WP-C2 2M E2B-M18KS08-WP-C2 2M E2B 2318C E2BM18KS08WPC22MOMI OMRON Inductive M18 Flush 8 mm 3h NPN NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KS08-WP-C2 2M E2B 2318C E2BM18KS08WPC22MOMI OMRON Inductive M18 Flush 8 mm 3h NPN NC Cable 2m Lite

E2B-M18KS08-WP-C2 2M

E2B 2318C

E2BM18KS08WPC22MOMI

OMRON

1 Pcs.

Inductive M18 Flush 8 mm 3h NPN NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, NPN NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive M18 flush proximity sensor is commonly integrated into automated machinery to detect metallic objects without physical contact, providing reliable position feedback for moving parts. These sensors are widely deployed in manufacturing and assembly lines to monitor machine cycles and component presence.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance8 mmOutput typeNPNOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor56 mmThread length36 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
