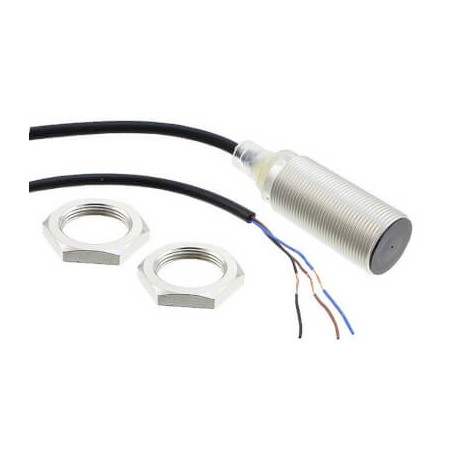

OMRON E2B-M18KS08-WP-B2 2M E2B-M18KS08-WP-B2 2M E2B 2314M E2BM18KS08WPB22MOMI OMRON Inductive M18 Flush 8 mm 3h-PNP NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KS08-WP-B2 2M E2B 2314M E2BM18KS08WPB22MOMI OMRON Inductive M18 Flush 8 mm 3h-PNP NC Cable 2m Lite

E2B-M18KS08-WP-B2 2M

E2B 2314M

E2BM18KS08WPB22MOMI

OMRON

1 Pcs.

Inductive M18 Flush 8 mm 3h-PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cylindrical inductive proximity sensor, the Omron E2B-M18KS08-WP-B2 2M monitors metal targets without mechanical contact in high-speed machinery and assembly lines. These sensors act as essential feedback devices for controlling automated processes and tracking component positioning.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance8 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor56 mmThread length36 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
