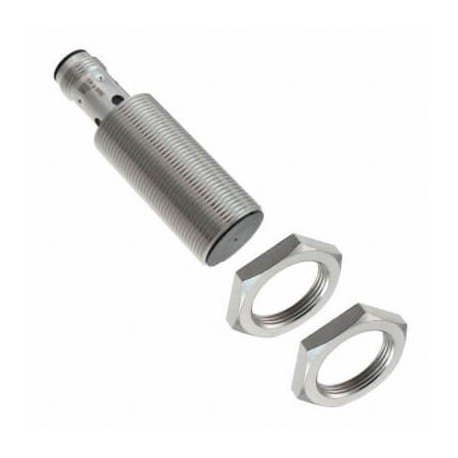

OMRON E2B-M18KS08-M1-B2 E2B-M18KS08-M1-B2 E2B 2322A E2BM18KS08M1B2OMI OMRON Inductive M18 Flush 8 mm 3h-PNP NC Connector M12 Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KS08-M1-B2 E2B 2322A E2BM18KS08M1B2OMI OMRON Inductive M18 Flush 8 mm 3h-PNP NC Connector M12 Lite

E2B-M18KS08-M1-B2

E2B 2322A

E2BM18KS08M1B2OMI

OMRON

1 Pcs.

Inductive M18 Flush 8 mm 3h-PNP NC Connector M12 Lite Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NC, M12 connector

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-M18KS08-M1-B2 inductive proximity sensor provides dependable non-contact target sensing for high-speed manufacturing machinery and industrial automation processes. Factory automation engineers rely on such inductive components to detect metallic elements and maintain precise operational cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance8 mmOutput typePNPOperation modeNCConnection methodConnector M12Material housingBrass, nickel platedCable specifications-Overall length of sensor59 mmThread length39 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
