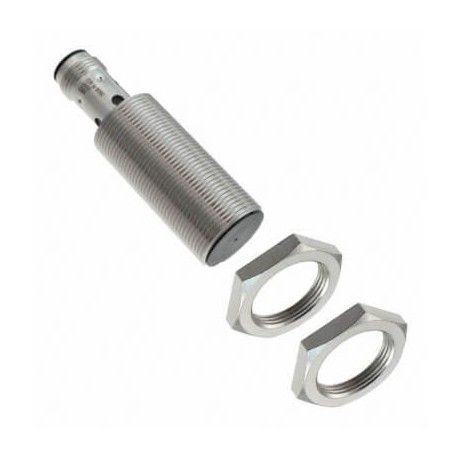

OMRON E2B-M18KS08-M1-B1 E2B-M18KS08-M1-B1 E2B 2320E E2BM18KS08M1B1OMI OMRON Inductive M18 Flush 8 mm 3h PNP NA Connector M12 Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KS08-M1-B1 E2B 2320E E2BM18KS08M1B1OMI OMRON Inductive M18 Flush 8 mm 3h PNP NA Connector M12 Lite

E2B-M18KS08-M1-B1

E2B 2320E

E2BM18KS08M1B1OMI

OMRON

1 Pcs.

Inductive M18 Flush 8 mm 3h PNP NA Connector M12 Lite Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP NO, M12 connector

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating through electromagnetic induction, this Omron E2B-M18KS08-M1-B1 proximity sensor detects metallic targets reliably without physical contact, making it ideal for automation tasks like part tracking and limit sensing. Industrial control systems depend on these units for consistent state detection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM18Mounting typeQuasi-flushSensing distance8 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingBrass, nickel platedCable specifications-Overall length of sensor59 mmThread length39 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
