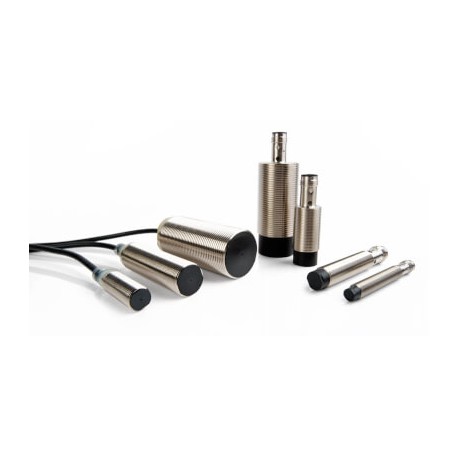

OMRON E2B-M18KS05-WP-C2 5M E2B-M18KS05-WP-C2 5M E2B 2199G E2BM18KS05WPC25MOMI OMRON Inductive M18 Flush 5 mm 3h NPN NC Cable 5m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KS05-WP-C2 5M E2B 2199G E2BM18KS05WPC25MOMI OMRON Inductive M18 Flush 5 mm 3h NPN NC Cable 5m Lite

E2B-M18KS05-WP-C2 5M

E2B 2199G

E2BM18KS05WPC25MOMI

OMRON

1 Pcs.

Inductive M18 Flush 5 mm 3h NPN NC Cable 5m Lite Proximity sensor, inductive, nickel-brass, short body, M18, shielded, 5 mm, DC, 3-wire, NPN-NC, 5 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

The ideal solution for standard industrial environments

Thanks to the simple construction and Omron’s innovative “hot melt” production process, the E2B sensors embody two characteristics: value-for-money and high reliability.

  • All-round-visible indicator
  • The laser printed part number
  • Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)
  • Operating temperature: -25°C to 70°C
  • Water resistance: IP67

Ordering information

Pre-wired

Size



Sensing distance

Output configuration

Order code (for pre-wired types with 2 m PVC cable)

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-WP-B1 2M2

E2B-S08KS02-WP-B2 2M2

−

⬛

4.0 mm

PNP1

E2B-S08KN04-WP-B1 2M2

E2B-S08KN04-WP-B2 2M2

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-WP-B1 2M

E2B-M12KS04-WP-B2 2M

−

⬛

8.0 mm

PNP1

E2B-M12KN08-WP-B1 2M

E2B-M12KN08-WP-B2 2M

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-WP-B1 2M

E2B-M18KS08-WP-B2 2M

−

⬛

16.0 mm

PNP1

E2B-M18KN16-WP-B1 2M

E2B-M18KN16-WP-B2 2M

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-WP-B1 2M

E2B-M30KS15-WP-B2 2M

−

⬛

30.0 mm

PNP1

E2B-M30LN30-WP-B1 2M

E2B-M30LN30-WP-B2 2M

Connector types

Size



Sensing distance

Output configuration

Order code

Operation mode NO

Operation mode NC

M8

⬛

−

2.0 mm

PNP1

E2B-S08KS02-MC-B12

E2B-S08KS02-MC-B22

−

⬛

4.0 mm

PNP1

E2B-S08KN04-MC-B12

E2B-S08KN04-MC-B22

M12

⬛

−

4.0 mm

PNP1

E2B-M12KS04-M1-B1

E2B-M12KS04-M1-B2

−

⬛

8.0 mm

PNP1

E2B-M12KN08-M1-B1

E2B-M12KN08-M1-B2

M18

⬛

−

8.0 mm

PNP1

E2B-M18KS08-M1-B1

E2B-M18KS08-M1-B2

−

⬛

16.0 mm

PNP1

E2B-M18KN16-M1-B1

E2B-M18KN16-M1-B2

M30

⬛

−

15.0 mm

PNP1

E2B-M30KS15-M1-B1

E2B-M30KS15-M1-B2

−

⬛

30.0 mm

PNP1

E2B-M30LN30-M1-B1

E2B-M30LN30-M1-B2

Optional features

Refer to complete datasheet or contact your OMRON representative for the below optional features

Sensing module and body

−Single sensing distance (ideal for compatibility with previous machine generations)

−Long body (ideal for mounting through thicker constructions)

Connection

−M8 3-pin -MC e.g. E2B-S08KS02-MC-B1

Output

−200 mA max. load current

Specifications

(Exemplary for shielded versions.)

Item

M8

M12

M18

M30

E2B-S08KS

E2B-M12KS

E2B-M18KS

E2B-M30KS

Sensing distance

2 mm±10%

4 mm±10%

8 mm±10%

15 mm±10%

Response frequency

1,500 Hz

1,000 Hz

500 Hz

250 Hz

Power supply voltage
(operating voltage)

12 to 24 VDC. Ripple (p-p): 10% max. (10 to 32 VDC)

Protective circuits

Output reverse polarity protection, Power source circuit reverse polarity protection

Ambient temperature

Operating and storage

−25 to 70°C

Degree of protection

IP67 after IEC 60529

Material

Case

Stainless steel

Brass-nickel plated

Sensing surface

PBT

1.NPN models are available. For ordering replace “-B1” or “-B2” by “-C1” or “-C2”.
2.M8 sized housings are only available in stainless steel (SUS 303).

ETIM for 674352 Sensors (EC002714)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Construction type housing (EF004008) Cylinder, screw-thread
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Mechanical mounting condition for sensor (EF004041) Concise
Type of interface for safety communication (EF003956) None
Type of actuation (EF006949) Metallic Target
Type of switch function (EF003963) Breaker contact
Type of electric connection (EF003961) Cable
Type of interface (EF006977) None
Housing material (EF001596) Metal
Type of switching output (EF003962) NPN
Explosion safety category for gas (EF003997) None
Suitable for safety functions (EF001597) No
Number of protected contact energized outputs (EF003952) 0
Number of protected semiconductor outputs (EF003951) 0
Diameter sensor (EF007111) 18 mm
Switching distance (EF003647) 5 mm
Length of sensor (EF007334) 56 mm
Switching frequency (EF003587) 500 Hz
Number of contact energized outputs with signalling function (EF003946) 0
Rated control supply voltage DC (EF003980) 12 V
