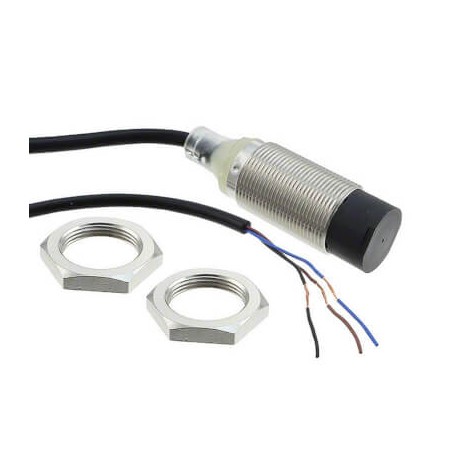

OMRON E2B-M18KN10-WP-C1 2M E2B-M18KN10-WP-C1 2M E2B 2292F E2BM18KN10WPC12MOMI OMRON Inductive M18 Non-enr 10mm 3h NPN NA Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KN10-WP-C1 2M E2B 2292F E2BM18KN10WPC12MOMI OMRON Inductive M18 Non-enr 10mm 3h NPN NA Cable 2m Lite

E2B-M18KN10-WP-C1 2M

E2B 2292F

E2BM18KN10WPC12MOMI

OMRON

1 Pcs.

Inductive M18 Non-enr 10mm 3h NPN NA Cable 2m Lite Proximity sensor, inductive, nickel-brass, short body, M18, unshielded, 10 mm, DC, 3-wire, NPN NO, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-M18KN10-WP-C1 2M inductive M18 Non-enr 10mm 3h NPN NA Cable 2m Lite is a cylindrical proximity sensor used extensively in factory automation to monitor structural parts, machinery limits, and assembly flow. Such components ensure reliable object detection under routine operating conditions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 10 mm

More info

▲
SizeM18Mounting typeNon-flushSensing distance10 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor56 mmThread length26 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
