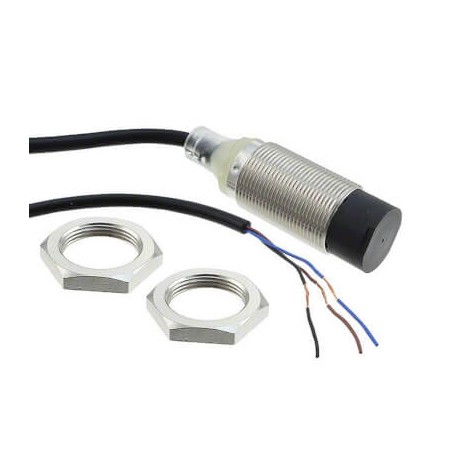

OMRON E2B-M18KN10-WP-B2 2M E2B-M18KN10-WP-B2 2M E2B 2290M E2BM18KN10WPB22MOMI OMRON Inductive M18 Non-enr 10mm 3h PNP NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M18KN10-WP-B2 2M E2B 2290M E2BM18KN10WPB22MOMI OMRON Inductive M18 Non-enr 10mm 3h PNP NC Cable 2m Lite

E2B-M18KN10-WP-B2 2M

E2B 2290M

E2BM18KN10WPB22MOMI

OMRON

1 Pcs.

Inductive M18 Non-enr 10mm 3h PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, short body, M18, unshielded, 10 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron inductive proximity sensor (E2B-M18KN10-WP-B2 2M) detects the presence of ferrous and non-ferrous metals without physical contact, functioning as an essential feedback device in material handling and automated machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Coating housing: Nickel-plated
  • Mechanical mounting condition for sensor: Not flat
  • Type of actuation: Metallic Target
  • Type of switch function: Breaker contact
  • Type of electric connection: Cable
  • Housing material: Metal
  • Type of switching output: PNP
  • Cascadable: Yes
  • Compression-resistant: No
  • Suitable for safety functions: No
  • Number of protected contact energized outputs: 0
  • Number of protected semiconductor outputs: 0
  • Diameter sensor: 18 mm
  • Switching distance: 10 mm

More info

▲
SizeM18Mounting typeNon-flushSensing distance10 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor56 mmThread length26 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
