OMRON E2B-M12LS04-M1-B1-20 E2B-M12LS04-M1-B1-20 E2B 7588D E2BM12LS04M1B120OMS OMRON Multi Pack E2B includes 20 units E2B-M12LS04-M1-B1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M12LS04-M1-B1-20 E2B 7588D E2BM12LS04M1B120OMS OMRON Multi Pack E2B includes 20 units E2B-M12LS04-M1-B1

E2B-M12LS04-M1-B1-20

E2B 7588D

E2BM12LS04M1B120OMS

OMRON

1 Pcs.

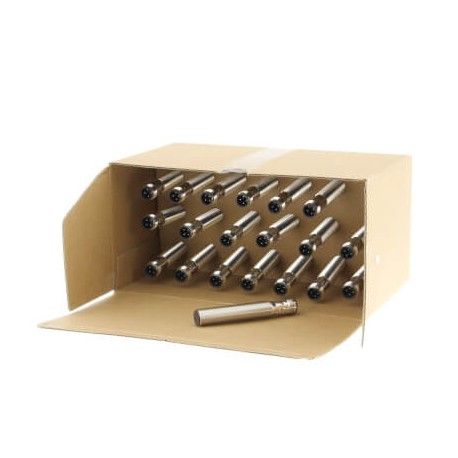

Multi Pack E2B includes 20 units E2B-M12LS04-M1-B1 Multi-pack E2B-M12LS04-M1-B1 OMS: 1 pcs. = 1 box of 20 pcs.

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This multi-pack contains 20 units of the Omron E2B-M12LS04-M1-B1-20 inductive proximity sensor, intended for high-volume installations and machine building applications. Such sensors allow automated machinery to detect metallic targets efficiently, providing continuous operational feedback for control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM12Mounting typeQuasi-flushSensing distance4 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingBrass, nickel platedCable specifications-Overall length of sensor74 mmThread length54 mmDegree of protection (IP)IP67
