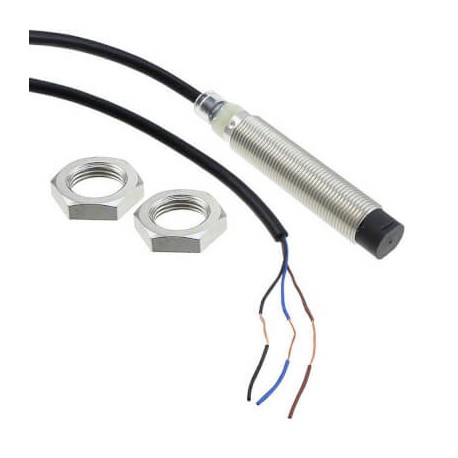

OMRON E2B-M12LN08-WP-B2 2M E2B-M12LN08-WP-B2 2M E2B 2182B E2BM12LN08WPB22MOMI OMRON Inductive M12 Long, Non-enr 8mm 3h PNP NC Cable 2m .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M12LN08-WP-B2 2M E2B 2182B E2BM12LN08WPB22MOMI OMRON Inductive M12 Long, Non-enr 8mm 3h PNP NC Cable 2m ..

E2B-M12LN08-WP-B2 2M

E2B 2182B

E2BM12LN08WPB22MOMI

OMRON

1 Pcs.

Inductive M12 Long, Non-enr 8mm 3h PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, long body,M12,unshielded, 8 mm, DC, 3-wire, PNP-NC, 2 m Prewired

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-M12LN08-WP-B2 2M is a long-body inductive proximity sensor built for general-purpose factory automation and machine tool applications. It provides consistent non-contact detection of metallic objects in continuous operation production lines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Coating housing (EF001601): Nickel-plated
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM12Mounting typeNon-flushSensing distance8 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor70 mmThread length46 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
