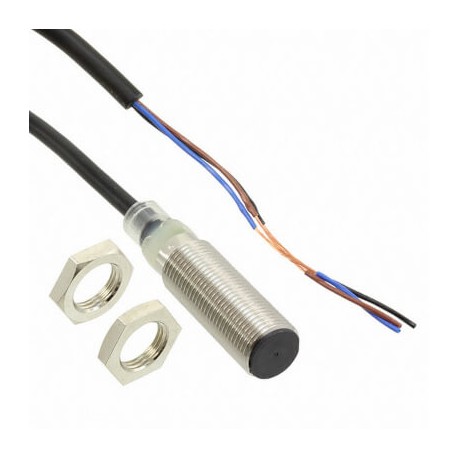

OMRON E2B-M12KS04-WP-B2 5M E2B-M12KS04-WP-B2 5M E2B 2147D E2BM12KS04WPB25MOMI OMRON Inductive M12 Flush 4 mm 3h-PNP NC Cable 5m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M12KS04-WP-B2 5M E2B 2147D E2BM12KS04WPB25MOMI OMRON Inductive M12 Flush 4 mm 3h-PNP NC Cable 5m Lite

E2B-M12KS04-WP-B2 5M

E2B 2147D

E2BM12KS04WPB25MOMI

OMRON

1 Pcs.

Inductive M12 Flush 4 mm 3h-PNP NC Cable 5m Lite Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP NC, 5 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2B-M12KS04-WP-B2 5M is an inductive proximity sensor from the Lite series, offering cost-effective and dependable metal detection for general industrial environments. Manufacturing equipment routinely incorporates these sensors to verify object positioning, count output items, and govern machine cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM12Mounting typeQuasi-flushSensing distance4 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length5 mOverall length of sensor47 mmThread length30 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
