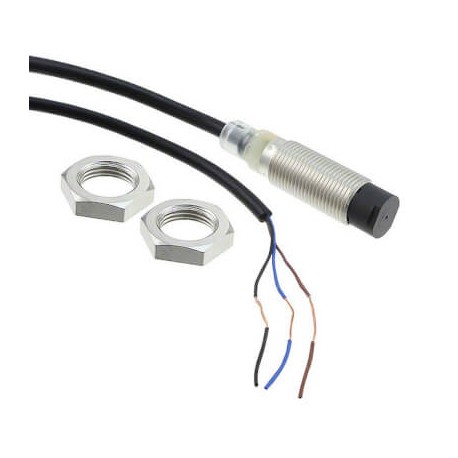

OMRON E2B-M12KN05-WP-B2 2M E2B-M12KN05-WP-B2 2M E2B 2122R E2BM12KN05WPB22MOMI OMRON Inductive M12 enr 5mm 3h PNP NC Cable 2m Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2B-M12KN05-WP-B2 2M E2B 2122R E2BM12KN05WPB22MOMI OMRON Inductive M12 enr 5mm 3h PNP NC Cable 2m Lite

E2B-M12KN05-WP-B2 2M

E2B 2122R

E2BM12KN05WPB22MOMI

OMRON

1 Pcs.

Inductive M12 enr 5mm 3h PNP NC Cable 2m Lite Proximity sensor, inductive, nickel-brass, short body, M12, unshielded, 5 mm, DC, 3-wire, PNP NC, 2 m cable

Automation > Inductive proximity switch
E2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2B-M12KN05-WP-B2 2M inductive proximity sensor offers dependable non-contact detection for metallic parts in automated machinery systems. Facilities utilize such cylindrical sensors to monitor mechanical travel, register part presence, and control production flow. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 5 mm
  • Length of sensor (EF007334): 47 mm
  • Switching frequency (EF003587): 800 Hz
  • Supply voltage (EF004127): 10 V

More info

▲
SizeM12Mounting typeNon-flushSensing distance5 mmOutput typePNPOperation modeNCConnection methodCableMaterial housingBrass, nickel platedCable specificationsPVCCable length2 mOverall length of sensor47 mmThread length23 mmDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
