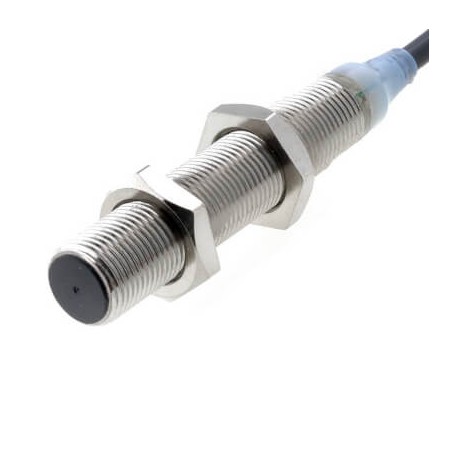

OMRON E2A-S12LS04-WP-B1 2M E2A-S12LS04-WP-B1 2M E2A 7408F E2AS12LS04WPB12MOMS OMRON Proximity sensor, inductive, stainless steel, long .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S12LS04-WP-B1 2M E2A 7408F E2AS12LS04WPB12MOMS OMRON Proximity sensor, inductive, stainless steel, long ..

E2A-S12LS04-WP-B1 2M

E2A 7408F

E2AS12LS04WPB12MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, stainless steel, long body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, 2 m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2A-S12LS04-WP-B1 2M proximity sensor, inductive, stainless steel, long .. delivers dependable detection of metallic objects in automated manufacturing environments. Industrial engineers specify these rugged proximity devices to monitor moving parts, control cycles, and confirm component locations reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 4 mm

More info

▲
SizeM12Mounting typeFlushSensing distance4 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor72 mmThread length56 mmDegree of protection (IP)IP67/IP69K
