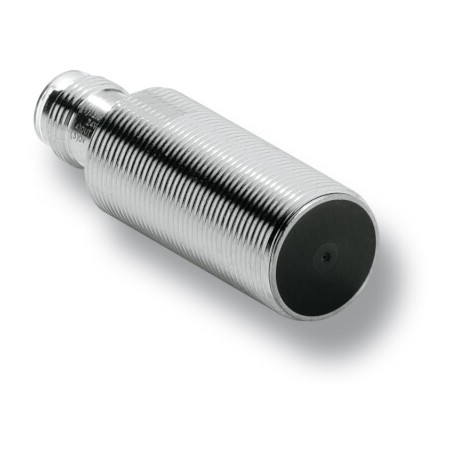

OMRON E2A-S08KN04-WP-B1 10M E2A-S08KN04-WP-B1 10M E2A 7513R E2AS08KN04WPB110MOMS OMRON Proximity sensor, inductive, stainless steel, sho.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KN04-WP-B1 10M E2A 7513R E2AS08KN04WPB110MOMS OMRON Proximity sensor, inductive, stainless steel, sho..

E2A-S08KN04-WP-B1 10M

E2A 7513R

E2AS08KN04WPB110MOMS

OMRON

1 Pcs.

Proximity sensor, inductive, stainless steel, short body, M8, unshielded, 4mm, DC, 3-wire, PNP-NO, 10m Prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2A-S08KN04-WP-B1 10M proximity sensor, inductive, stainless steel, sho... detects metallic targets reliably within automated assembly lines and production machinery. Industrial equipment relies on inductive sensing elements to monitor machine status, track inventory movement, and maintain process timing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 4 mm
  • Length of sensor (EF007334): 40 mm
  • Switching frequency (EF003587): 1000 Hz
  • Rated control supply voltage DC (EF003980): 12 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
