OMRON E2A-M18KN16-M1-B1-20 E2A-M18KN16-M1-B1-20 671539 E2AM18KN16M1B120OMS OMRON Multi Pack E2A includes 20 units E2A-M18KN16-M1-B1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M18KN16-M1-B1-20 671539 E2AM18KN16M1B120OMS OMRON Multi Pack E2A includes 20 units E2A-M18KN16-M1-B1

E2A-M18KN16-M1-B1-20

671539

E2AM18KN16M1B120OMS

OMRON

1 Pcs.

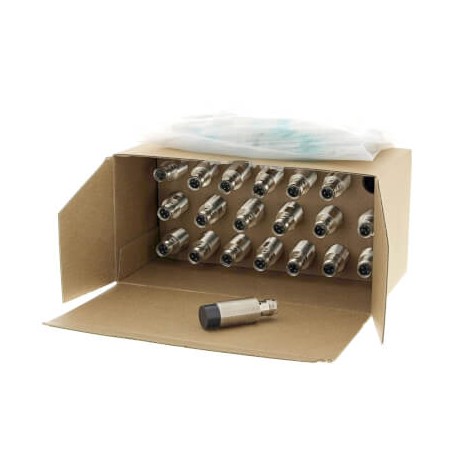

Multi Pack E2A includes 20 units E2A-M18KN16-M1-B1 Multi-pack E2A-M18KN16-M1-B1: 1pcs.= 1 box of 20 pcs.

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A multi-pack of Omron proximity sensors designated as E2A-M18KN16-M1-B1-20 provides dependable metal detection capabilities for high-volume automated production lines, conveyors, and sorting equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M18
  • Mounting type: Non-flush
  • Sensing distance: 16 mm
  • Output type: PNP
  • Operation mode: NO
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 53 mm
  • Thread length: 29 mm

More info

▲

Specifications

SizeM18
Mounting typeNon-flush
Sensing distance16 mm
Output typePNP
Operation modeNO
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length53 mm
Thread length29 mm

Accessories

XS5F-D421-D80-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 2 m
XS5F-D421-D80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5F-D421-G80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 5 m
XS5F-D421-G80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
XS5F-D421-J80-XSmartclick Sensor connector able, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, 10 m
XS5F-D421-J80-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female connector, IP67 and IP69K, cutting oil resistant, for robotic applications, 10 m
XS5W-D421-C81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 1 m
XS5W-D421-C81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 1 m
XS5W-D421-D81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 2 m
XS5W-D421-D81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 2 m
XS5W-D421-G81-XSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and male connectors, IP67 and IP69K, cutting oil resistant, 5 m
XS5W-D421-G81-XRSmartclick Sensor connector cable, M12 4-pin, PVC, Straight female and mail connectors, IP67 and IP69K, cutting oil resistant, for robotic applications, 5 m
