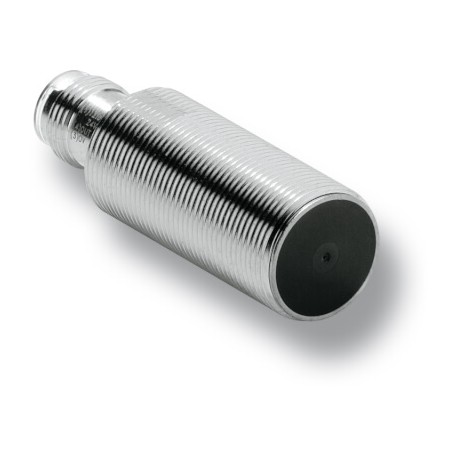

OMRON E2A-M12LS02-WP-B1-TP 5M E2A-M12LS02-WP-B1-TP 5M E2A 7335G E2AM12LS02WPB1TP5MOMS OMRON Proximity Sensor, inductive, brass-nickel, lon.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12LS02-WP-B1-TP 5M E2A 7335G E2AM12LS02WPB1TP5MOMS OMRON Proximity Sensor, inductive, brass-nickel, lon..

E2A-M12LS02-WP-B1-TP 5M

E2A 7335G

E2AM12LS02WPB1TP5MOMS

OMRON

1 Pcs.

Proximity Sensor, inductive, brass-nickel, long body, M12, shielded, 2mm, DC, 3-wire, PNP-NO, 5m prewired, including washer.

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An inductive proximity sensor, the Omron E2A-M12LS02-WP-B1-TP 5M provides reliable non-contact detection of metal targets in dynamic industrial processing environments. Engineers integrate these threaded cylinder units into automated machinery to monitor operational sequences and physical positions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 2 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
