View larger
Images are for illustrative purposes only. Please refer to data sheet for details

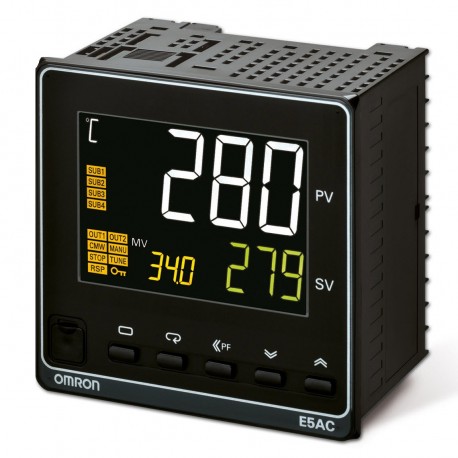

E5AC-PR4D5M-000 E5AC3063M E5ACPR4D5M000 OMRON Ent Universal 4 Alarm Valve Motor 24vdc/Vac 96x96
E5AC-PR4D5M-000
E5AC3063M
E5ACPR4D5M000
OMRON
1 Pcs.
Ent Universal 4 Alarm Valve Motor 24vdc/Vac 96x96
Ent Universal 4 Alarms Valvula Motor 24Vcc/Vca 96x96
Temp. controller, PRO,1/4 DIN (96x96mm),1 x Valve OUT + Pot.,4 AUX,24VAC/DC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 4 |
| Width (EF000008) | 96 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 60 mm |
| Supply voltage AC 50 Hz (EF007532) | 21.6 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 21.6 V |
| Supply voltage DC (EF007534) | 21.6 V |
