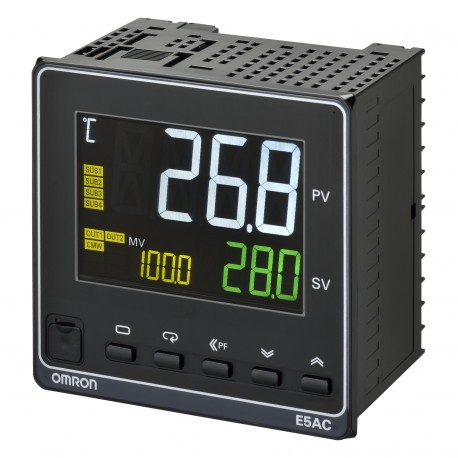

OMRON E5AC-CC4D5M-014 E5AC-CC4D5M-014 E5AC3059A E5ACCC4D5M014 OMRON Ent Univ 4 Alarms 2 Current 4 Evt RS485 RSP Transf 24vdc/Vac 9.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-CC4D5M-014 E5AC3059A E5ACCC4D5M014 OMRON Ent Univ 4 Alarms 2 Current 4 Evt RS485 RSP Transf 24vdc/Vac 9..

E5AC-CC4D5M-014

E5AC3059A

E5ACCC4D5M014

OMRON

1 Pcs.

Ent Univ 4 Alarms 2 Current 4 Evt RS485 RSP Transf 24vdc/Vac 96x96 Temp. controller, PRO,1/4 DIN (96x96mm),2x0/4-20mA curr. OUT,4 AUX,EVT. I/P 4,RS-485,Transf. OUT,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron Ent Univ 4 Alarms 2 Current 4 Evt RS485 RSP Transf 24vdc/Vac 9.. part number E5AC-CC4D5M-014 is a sophisticated process controller configured to maintain exact thermal parameters in automated industrial systems. Units of this type are routinely installed on large machinery and thermal treatment vessels to regulate heating elements and monitor multiple alarm conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 4
  • Width (EF000008): 96 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 96 mm
  • Depth (EF000049): 60 mm
  • Supply voltage AC 50 Hz (EF007532): 21.6 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 21.6 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
