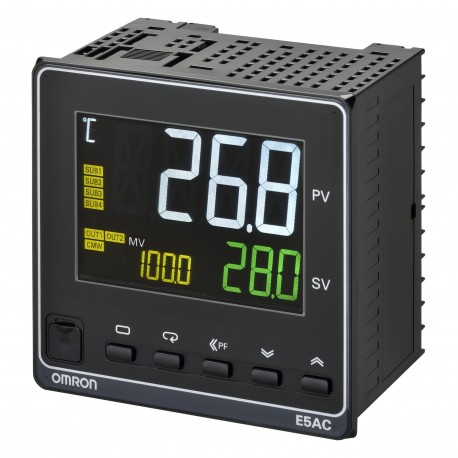

OMRON E5AC-CC4A5M-005 E5AC-CC4A5M-005 E5AC3054M E5ACCC4A5M005 OMRON Ent Universal 4 Alarms 2 Salt Current 4 Evt 100-240vac 96x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-CC4A5M-005 E5AC3054M E5ACCC4A5M005 OMRON Ent Universal 4 Alarms 2 Salt Current 4 Evt 100-240vac 96x96

E5AC-CC4A5M-005

E5AC3054M

E5ACCC4A5M005

OMRON

1 Pcs.

Ent Universal 4 Alarms 2 Salt Current 4 Evt 100-240vac 96x96 Temp. controller, PRO,1/4 DIN (96x96mm),2x0/4-20mA curr. OUT,4 AUX,EVT. I/P 4,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E5AC-CC4A5M-005 is a panel-mounted temperature controller utilized for precise thermal regulation across various manufacturing setups. Instruments of this class continuously evaluate process variables against defined thresholds to deliver reliable output control in automated systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 4
  • Width (EF000008): 96 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 96 mm
  • Depth (EF000049): 60 mm
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 100 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
