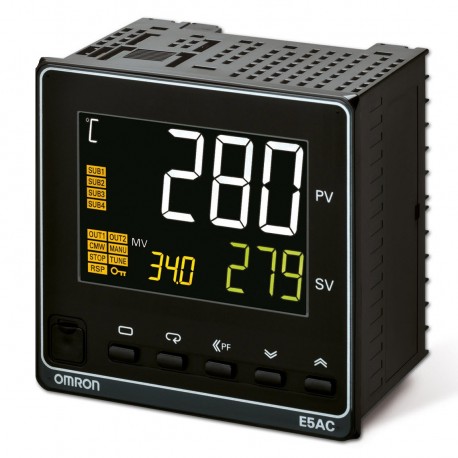

OMRON E5AC-PR4A5M-000 E5AC-PR4A5M-000 E5AC3060E E5ACPR4A5M000 OMRON Ent Univ 4 Alarm Valve Motor 100-240vac 96x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-PR4A5M-000 E5AC3060E E5ACPR4A5M000 OMRON Ent Univ 4 Alarm Valve Motor 100-240vac 96x96

E5AC-PR4A5M-000

E5AC3060E

E5ACPR4A5M000

OMRON

1 Pcs.

Ent Univ 4 Alarm Valve Motor 100-240vac 96x96 Temp. controller, PRO; 1/4 DIN (96x96 mm); t/c & Pt100 & analog;4 alarms;1st out relay; 2n out relay;PRR

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E5AC-PR4A5M-000 is a specialized temperature controller equipped to manage motorized valves and proportional positioning loops in advanced industrial systems. This unit ensures precise flow and thermal regulation across demanding manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/4 DIN (96 x 96 mm)
  • Functions: ON/OFF control, PID control, Positional proportional control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 4
  • Supply voltage AC: 100-240 V
  • Control output: 2 Relay
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/4 DIN (96 x 96 mm)
FunctionsON/OFF control, PID control, Positional proportional control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs4
Supply voltage AC100-240 V
Control output2 Relay
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
