E5AC-RR4D5M-010 E5AC3021D E5ACRR4D5M010 OMRON Ent Univ 4 Alarms 2 Salt Relay 4 Evt HBA 24vdc/Vac 96x96
E5AC-RR4D5M-010
E5AC3021D
E5ACRR4D5M010
OMRON
1 Pcs.
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

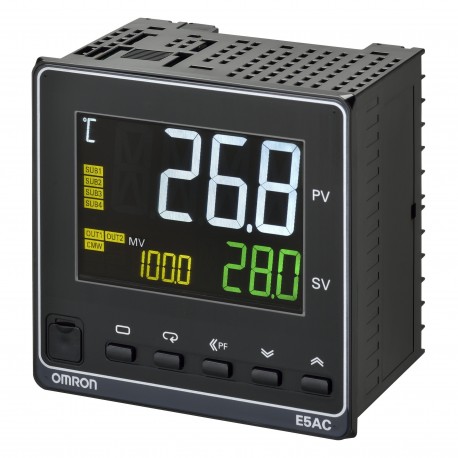

An Omron process controller, part number E5AC-RR4D5M-010, is implemented in industrial automation environments to govern complex thermal processes and maintain stability. This unit processes incoming measurement signals and adjusts system outputs to adhere to programmed setpoints.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type (operating voltage): AC/DC
- Type of electric connection: Screw connection
- Voltage type (supply voltage): AC/DC
- Error registration possible: No
- External reset possible: No
- With detachable clamps: No
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 4
- Width: 96 mm
- Number of contacts as normally closed contact: 0
- Number of measuring circuits: 1
- Height: 96 mm
- Depth: 60 mm
- Supply voltage AC 50 Hz: 21.6 V
- Temperature measuring range: -200 °C
- Supply voltage AC 60 Hz: 21.6 V
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
