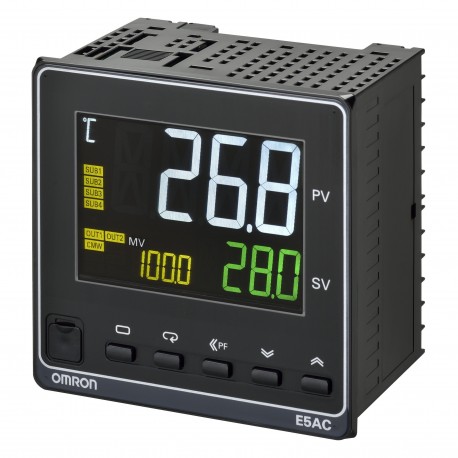

E5AC-QX4D5M-009 E5AC3011G E5ACQX4D5M009 OMRON Ent Univ 4 Alarms Salt SRH 2 Evt RS485 HBA Trif-24vdc/Vac 96x96
E5AC-QX4D5M-009
E5AC3011G
E5ACQX4D5M009
OMRON
1 Pcs.
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron temperature controller (E5AC-QX4D5M-009) is installed within control panels to regulate heat distribution and thermal profiles in industrial production equipment. The unit processes thermal input data and adjusts control outputs to maintain strict compliance with predefined process setpoints.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Voltage type (operating voltage) (EF005294): AC/DC
- Type of electric connection (EF003961): Screw connection
- Voltage type (supply voltage) (EF002991): AC/DC
- Error registration possible (EF003423): No
- External reset possible (EF003426): No
- With detachable clamps (EF003340): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 4
- Width (EF000008): 96 mm
- Number of contacts as normally closed contact (EF008255): 0
- Number of measuring circuits (EF003425): 1
- Height (EF000040): 96 mm
- Depth (EF000049): 60 mm
- Supply voltage AC 50 Hz (EF007532): 21.6 V
- Temperature measuring range (EF009788): -200 °C
- Supply voltage AC 60 Hz (EF007533): 21.6 V
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
