OMRON E5AC-QX4A5M-011 E5AC-QX4A5M-011 E5AC3014A E5ACQX4A5M011 OMRON Ent Univ 4 Alarms Salt SRH 6 Evt HBA RSP Transf 100-240vac 96x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-QX4A5M-011 E5AC3014A E5ACQX4A5M011 OMRON Ent Univ 4 Alarms Salt SRH 6 Evt HBA RSP Transf 100-240vac 96x..

E5AC-QX4A5M-011

E5AC3014A

E5ACQX4A5M011

OMRON

1 Pcs.

Ent Univ 4 Alarms Salt SRH 6 Evt HBA RSP Transf 100-240vac 96x96 Temp. controller, PRO,1/4 DIN (96x96mm),1 x 12 VDC pulse OUT,4 AUX,EVT. I/P 6,Rem. SP I/P,Ht. Burnout SSR fail.,Transf. OUT,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

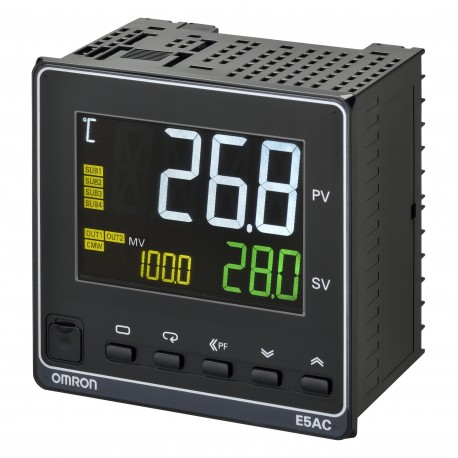

The Omron E5AC-QX4A5M-011 temperature controller functions as an automated control instrument designed to govern thermal processes, providing stable loop management for industrial heating systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC
  • Error registration possible: No
  • External reset possible: No
  • With detachable clamps: No
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 4
  • Width: 96 mm
  • Number of contacts as normally closed contact: 0
  • Number of measuring circuits: 1
  • Height: 96 mm
  • Depth: 60 mm
  • Supply voltage AC 50 Hz: 100 V
  • Temperature measuring range: -200 °C
  • Supply voltage AC 60 Hz: 100 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
