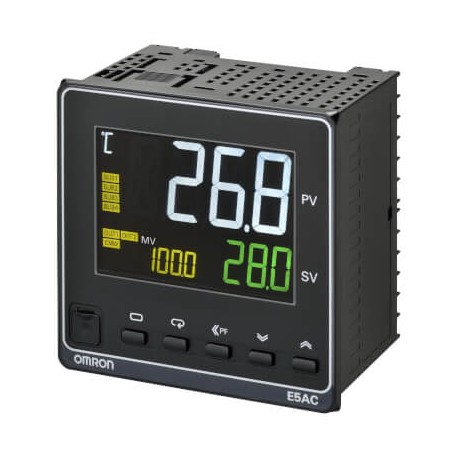

OMRON E5AC-CX4A5M-000 E5AC-CX4A5M-000 E5AC3040M 374727 OMRON Ent Univ 4 Alarms Salt Stream 100-240Vac 96x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-CX4A5M-000 E5AC3040M 374727 OMRON Ent Univ 4 Alarms Salt Stream 100-240Vac 96x96

E5AC-CX4A5M-000

E5AC3040M

E5ACCX4A5M000

OMRON

1 Pcs.

Ent Univ 4 Alarms Salt Current 100-240vac 96x96 Temp. controller, PRO; 1/4 DIN (96x96 mm); t/c & Pt100 & analog;4 alarms; 1st out current (lin)

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-performance temperature controller is implemented in industrial installations to regulate complex thermal profiles, utilizing advanced control loops to eliminate process overshoot. This Omron E5AC-CX4A5M-000 model offers a wide 1/4 DIN display surface for improved visibility of process variables in plant environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/4 DIN (96 x 96 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 4
  • Supply voltage AC: 100-240 V
  • Control output: Linear current
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/4 DIN (96 x 96 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs4
Supply voltage AC100-240 V
Control outputLinear current
TerminalScrew
