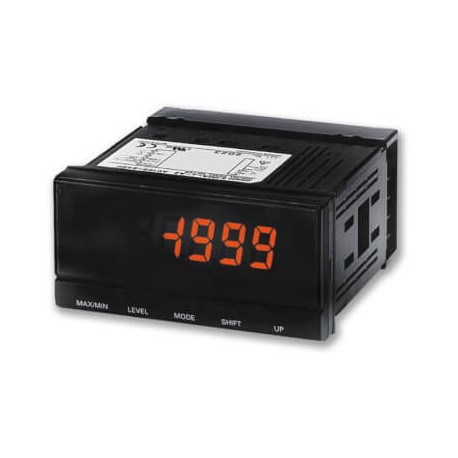

OMRON K3MA-J-A2 24VAC/DC K3MA-J-A2 24VAC/DC K3MA1104C K3MAJA224ACDC OMRON Analog Voltage / Current DC 2 SPST-NO 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3MA-J-A2 24VAC/DC K3MA1104C K3MAJA224ACDC OMRON Analog Voltage / Current DC 2 SPST-NO 48x96

K3MA-J-A2 24VAC/DC

K3MA1104C

K3MAJA224ACDC

OMRON

1 Pcs.

Analog Voltage / Current DC 2 SPST-NO 48x96 Process meter, DIN 96x48 mm, color change display, DC voltage/ current input, 2NO relay output, 24 VAC/DC

Automation > Multifunction measuring instrument
K3MA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Process signal conditioning and display are executed seamlessly by the K3MA-J-A2 24VAC/DC Omron analog voltage and current indicator. Panel builders integrate these devices to scale and read diverse sensor outputs, utilizing dual relay outputs for threshold alarming and control logic.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Process
  • Input type: DC current, DC voltage
  • Input range: -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Size: 1/8 DIN (96 x 48 mm)
  • Number of digits: 5
  • Output type: Relay
  • Contact description: 2 x SPST-NO
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Accuracy: +/- 0.1% full scale
  • Sample rate: 250 ms
  • Features: Colour change display
  • Product Width (unpacked): 96 mm
  • Product Height (unpacked): 48 mm
  • Product Depth (unpacked): 80 mm
  • Mounting method (EF000003): Front mounting

More info

▲

Specifications

TypeProcess
Input typeDC current, DC voltage
Input range-10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Size1/8 DIN (96 x 48 mm)
Number of digits5
Output typeRelay
Contact description2 x SPST-NO
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Accuracy+/- 0.1% full scale
Sample rate250 ms
Communication port(s)None
FeaturesColour change display
Product Width (unpacked)96 mm
Product Height (unpacked)48 mm
Product Depth (unpacked)80 mm

Accessories

K32-49HCHard cover for use with 96x48mm panel meter
K32-49SCSplash-proof soft cover for use with 96x48mm panel meter
