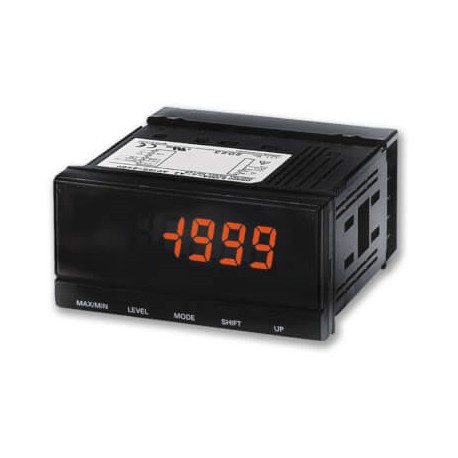

OMRON K3MA-J 100-240VAC K3MA-J 100-240VAC K3MA1101R K3MAJ100240AC OMRON Intelligent processor of signal, DC input voltage/ current 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3MA-J 100-240VAC K3MA1101R K3MAJ100240AC OMRON Intelligent processor of signal, DC input voltage/ current 1..

K3MA-J 100-240VAC

K3MA1101R

K3MAJ100240AC

OMRON

1 Pcs.

Intelligent processor of signal, DC input voltage/ current 100-240 VAC Process meter, DIN 96 x 48 mm, colour change display, DC voltage/ current input

Automation > Multifunction measuring instrument
K3MA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An intelligent processor of signal, the Omron K3MA-J 100-240VAC handles direct measurement tasks for DC input voltages and currents in control loops. Signal processors are used to scale and condition sensor outputs so control systems can accurately interpret field variables.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Front mounting
  • Model (EF000010): Direct measurement
  • Voltage type (supply voltage) (EF002991): AC
  • Display (EF000360): LCD
  • With communication interface RS-485 (EF007314): No
  • Pulse counter (EF006559): Yes
  • Effective power measurement device (EF006561): No
  • Supporting protocol for other bus systems (EF003062): No
  • Harmonics measurement (EF001835): No
  • Power factor (EF001927): No
  • With rotational speed meter (EF006557): No
  • Apparent power (EF001929): No
  • Step angle (cos phi) (EF001930): No
  • Suitable for RJ plug (EF008697): No
  • With communication interface KNX (EF015735): No
  • Wth communication interface M-Bus (EF016136): No

More info

▲
TypeProcessInput typeDC current, DC voltageInput range-10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mASize1/8 DIN (96 x 48 mm)Number of digits5Output typeNoneSupply voltage AC100-240 VAccuracy+/- 0.1% full scaleSample rate250 msCommunication port(s)NoneFeaturesColour change displayProduct Width (unpacked)96 mmProduct Height (unpacked)48 mmProduct Depth (unpacked)80 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
