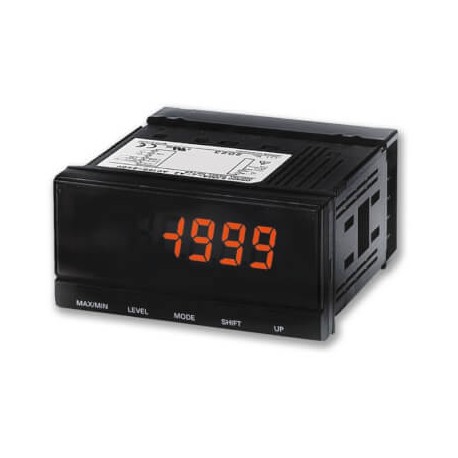

K3MA-F-A2 24VAC/DC K3MA3104D K3MAFA224ACDC OMRON Frequency 2 SPST-NO 48x96
K3MA-F-A2 24VAC/DC
K3MA3104D
K3MAFA224ACDC
OMRON
1 Pcs.
Frequency 2 SPST-NO 48x96
Frequency/rate meter, DIN 96x48 mm, color change display, pulse input, 2NO relay output, 24 VAC/DC
Automation > Multifunction measuring instrument
K3MA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Type | Frequency, Rate |
| Input type | No voltage, Open collector |
| Input range | 0.05 to 30 Hz, 0.1 to 5000 Hz |
| Size | 1/8 DIN (96 x 48 mm) |
| Number of digits | 5 |
| Output type | Relay |
| Contact description | 2 x SPST-NO |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Accuracy | +/- 0.1% full scale |
| Communication port(s) | None |
| Features | Colour change display |
| Product Width (unpacked) | 96 mm |
| Product Height (unpacked) | 48 mm |
| Product Depth (unpacked) | 80 mm |
Accessories
| K32-49HC | Hard cover for use with 96x48mm panel meter | ||
| K32-49SC | Splash-proof soft cover for use with 96x48mm panel meter |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Front mounting |
| Model (EF000010) | Direct measurement |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Degree of protection (IP), front side (EF003118) | Other |
| Pulse output (EF008838) | Electrical |
| Display (EF000360) | LED |
| With communication interface RS-485 (EF007314) | No |
| Pulse counter (EF006559) | No |
| Effective power measurement device (EF006561) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Harmonics measurement (EF001835) | No |
| Power factor (EF001927) | No |
| With rotational speed meter (EF006557) | No |
| Apparent power (EF001929) | No |
| Step angle (cos phi) (EF001930) | No |
| Suitable for RJ plug (EF008697) | No |
| With communication interface KNX (EF015735) | No |
| Wth communication interface M-Bus (EF016136) | No |
| Measurement type load profile (EF008844) | No |
| With firmware signature (EF015392) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| Frequency meter (EF006558) | Yes |
| Measured value memory (EF000307) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Remote display (EF016138) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Calibrated (EF008836) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Ampere meter (EF006555) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Reactive power meter (EF006556) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| Voltmeter (EF006560) | No |
| Number of Ethernet connections (EF004661) | 0 |
| Width (EF000008) | 96 mm |
| Number of digital inputs (EF001992) | 1 |
| Depth (EF000049) | 80 mm |
| Number of analogue inputs (EF001994) | 0 |
| Number of voltage measurement inputs (EF015385) | 0 |
| Number of digital outputs (EF001993) | 2 |
| Number of current measurement inputs (EF015388) | 0 |
| Number of analogue outputs (EF001995) | 0 |
| Height (EF000040) | 48 mm |
| Measuring range for frequency (EF009469) | 0.05 Hz |
| Connectable conductor cross section solid-core (EF007337) | 0.08 mm² |
