> OMRON > Panel Indicators > K3MA > K3MA3103F

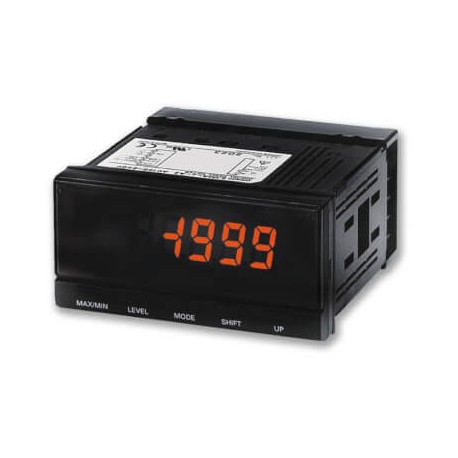

OMRON K3MA-F-A2 100-240VAC K3MA-F-A2 100-240VAC K3MA3103F K3MAFA2100240AC OMRON Frequency 2 SPST-NO 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3MA-F-A2 100-240VAC K3MA3103F K3MAFA2100240AC OMRON Frequency 2 SPST-NO 48x96

K3MA-F-A2 100-240VAC

K3MA3103F

K3MAFA2100240AC

OMRON

1 Pcs.

Frequency 2 SPST-NO 48x96 Frequency/rate meter, DIN 96x48 mm, color change display, pulse input, 2NO relay output, 100-240 VAC

Automation > Multifunction measuring instrument
K3MA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for frequency measurement tasks, the Omron K3MA-F-A2 100-240VAC provides reliable data acquisition for industrial frequency inputs. Frequency monitors are routinely installed in generator sets and drive systems to ensure rotational and electrical frequencies remain within safe limits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Front mounting
  • Model (EF000010): Direct measurement
  • Voltage type (supply voltage) (EF002991): AC
  • Pulse output (EF008838): Electrical
  • Display (EF000360): LED
  • With communication interface RS-485 (EF007314): No
  • Pulse counter (EF006559): No
  • Effective power measurement device (EF006561): No
  • Supporting protocol for other bus systems (EF003062): No
  • Harmonics measurement (EF001835): No
  • Power factor (EF001927): No
  • With rotational speed meter (EF006557): No
  • Apparent power (EF001929): No
  • Step angle (cos phi) (EF001930): No
  • Suitable for RJ plug (EF008697): No
  • With communication interface KNX (EF015735): No

More info

▲
TypeFrequency, RateInput typeNo voltage, Open collectorInput range0.05 to 30 Hz, 0.1 to 5000 HzSize1/8 DIN (96 x 48 mm)Number of digits5Output typeRelayContact description2 x SPST-NOSupply voltage AC100-240 VAccuracy+/- 0.1% full scaleCommunication port(s)NoneFeaturesColour change displayProduct Width (unpacked)96 mmProduct Height (unpacked)48 mmProduct Depth (unpacked)80 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
