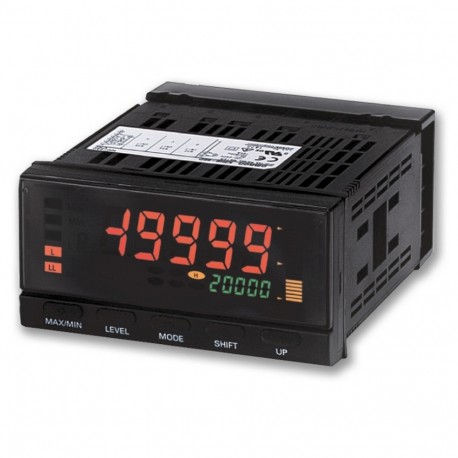

OMRON K3HB-XVD 24VAC/VDC K3HB-XVD 24VAC/VDC K3HB2002E K3HBXVD24VACVDC OMRON Analog Input voltage Vcc 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3HB-XVD 24VAC/VDC K3HB2002E K3HBXVD24VACVDC OMRON Analog Input voltage Vcc 48x96

K3HB-XVD 24VAC/VDC

K3HB2002E

K3HBXVD24VACVDC

OMRON

1 Pcs.

Analog Input voltage Vcc 48x96 Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, DC voltage input ±199.99 Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, DC voltage input ±199.99V and 1.0000 to 5.0000V, 24 VAC/VDC supply

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The K3HB-XVD 24VAC/VDC Omron analog input voltage indicator provides high-accuracy measurement capabilities for direct voltage signals within automation panels. Technicians deploy these versatile front-mounted meters to ensure precise monitoring of fluctuating electrical process variables.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Process
  • Input type: DC voltage
  • Input range: -199.99 to 199.99 V
  • Size: 1/8 DIN (96 x 48 mm)
  • Number of digits: 5
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Accuracy: +/- 0.1% full scale
  • Sample rate: 20 ms
  • Features: Colour change display
  • Mounting method (EF000003): Front mounting
  • Model (EF000010): Direct measurement
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Display (EF000360): LCD
  • Calibrated (EF008836): No
  • With communication interface RS-485 (EF007314): No

More info

▲

Specifications

TypeProcess
Input typeDC voltage
Input range-199.99 to 199.99 V
Size1/8 DIN (96 x 48 mm)
Number of digits5
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Accuracy+/- 0.1% full scale
Sample rate20 ms
FeaturesColour change display
