K3HB-XAD 24VAC/VDC

K3HB2004A

K3HBXAD24VACVDC

OMRON

1 Pcs.

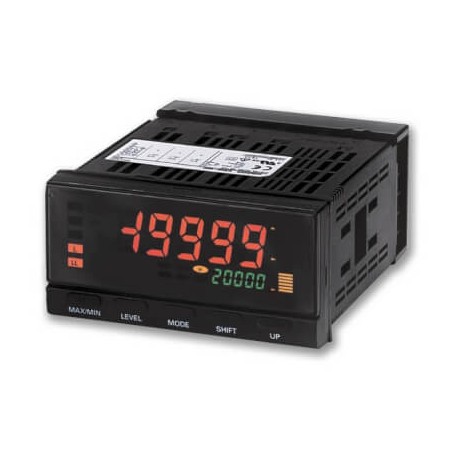

Analog Input current Vcc Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, DC current input ±199.99 Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, DC current input ±199.99mA and 4.000 to 20.000mA, 24 VAC/VDC supply

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

TypeProcess
Input typeDC current
Input range-199.99 to 199.99 mA
Size1/8 DIN (96 x 48 mm)
Number of digits5
Output typeNone
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Accuracy+/- 0.1% full scale
Sample rate20 ms
Communication port(s)None
FeaturesColour change display
Product Width (unpacked)96 mm
Product Height (unpacked)48 mm
Product Depth (unpacked)95 mm

Accessories

K33-Aoption board (Slot B), not compatible with K3N models, 12 VDC 80mA sensor power supply , not suitable for K3HB-V models
K33-CPAoption board (Slot B), not compatible with K3N models, 1 relay (PASS) SPDT and 12 VDC 80mA sensor power supply
K33-FLK3Aoption board (Slot B), not compatible with K3N models, Communications RS-485 and 10 VDC 100mA sensor power supply
K33-L1Aoption board (Slot B), not compatible with K3N models, Linear DC (0)4-20mA Output and 12 VDC 80mA sensor power supply
K33-L2Aoption board (Slot B), not compatible with K3N models, Linear DC(0)1-5V or 0 to 10V Output and 12 VDC 80mA sensor power supply
K34-C1option board (Slot C), not compatible with K3N models, 2 relays (High/Low) SPDT for each relay
K34-C2option board (Slot C), not compatible with K3N models, 4 relays (HH/H/L/LL) SPNO for each relay
K34-T1option board (Slot C), not compatible with K3N models, 5 NPN open collector output (HH/H/PASS/L/LL)
K35-1option board (Slot D), not compatible with K3N models, NPN open collecor event input card 5 points M3 terminal block
K35-3option board (Slot D), not compatible with K3N models, PNP open collecor event input card 5 points M3 terminal block
Y92A-49NWatertight cover for DIN48x96mm device, IP66, plastic

ETIM for 168445 Modular devices for distribution board/surface mounting (EC002301)
Feature Name Feature Value
Mounting method (EF000003) Front mounting
Model (EF000010) Direct measurement
Accuracy class active energy according to IEC 62053-22 (EF015238) Other
Accuracy class reactive energy according to IEC 62053-23 (EF015239) Other
Degree of protection (IP), front side (EF003118) Other
Voltage type (supply voltage) (EF002991) AC/DC
Pulse output (EF008838) None
Display (EF000360) LCD
Calibrated (EF008836) No
With communication interface RS-485 (EF007314) No
Pulse counter (EF006559) No
Supporting protocol for PROFIBUS (EF003052) No
Effective power measurement device (EF006561) No
Ampere meter (EF006555) Yes
Supporting protocol for other bus systems (EF003062) No
Harmonics measurement (EF001835) No
Power factor (EF001927) No
With rotational speed meter (EF006557) No
Apparent power (EF001929) No
Step angle (cos phi) (EF001930) No
Suitable for RJ plug (EF008697) No
With communication interface KNX (EF015735) No
Wth communication interface M-Bus (EF016136) No
Supporting protocol for Modbus (EF003057) No
Measurement type load profile (EF008844) No
Reactive power meter (EF006556) No
With firmware signature (EF015392) No
With audit logging (audit log) (EF015391) No
Supporting protocol for OPC UA PubSub (EF015390) No
With Role Based Access Control (RBAC) (EF015394) No
With logging of security events (security event log) (EF015393) No
Frequency meter (EF006558) No
Web server with HTTPS transfer protocol (EF015395) No
Measured value memory (EF000307) Yes
Supporting protocol for PROFINET IO (EF007525) No
Remote display (EF016138) No
Voltmeter (EF006560) Yes
Supporting protocol for IEC 61850 Ethernet (EF015389) No
Number of analogue inputs (EF001994) 1
Number of voltage measurement inputs (EF015385) 0
Number of digital outputs (EF001993) 0
Sampling frequency (EF015240) 50 Hz
Number of current measurement inputs (EF015388) 1
Number of analogue outputs (EF001995) 0
Number of Ethernet connections (EF004661) 0
Width (EF000008) 96 mm
Number of digital inputs (EF001992) 1
Height (EF000040) 48 mm
Depth (EF000049) 112 mm
Supply voltage AC 50 Hz (EF007532) 20.4 V
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Supply voltage AC 60 Hz (EF007533) 20.4 V
Supply voltage DC (EF007534) 20.4 V
