View larger
Images are for illustrative purposes only. Please refer to data sheet for details

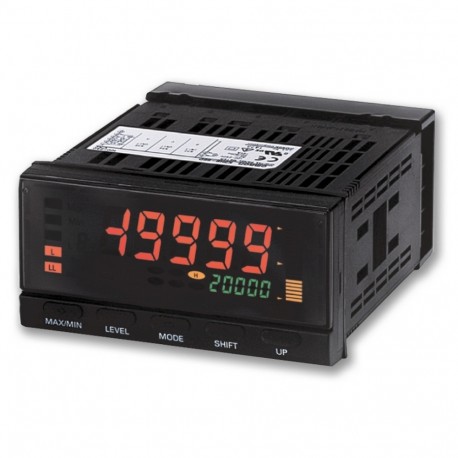

K3HB-XAA 100-240VAC K3HB2007F K3HBXAA100240VAC OMRON Analog current Input Vac
K3HB-XAA 100-240VAC
K3HB2007F
K3HBXAA100240VAC
OMRON
1 Pcs.
Analog current Input Vac
Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, AC current input 0-19.99
Automation > Multifunction measuring instrument
K3HB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Type | Process |
| Input type | AC current |
| Input range | 0 to 10 A |
| Size | 1/8 DIN (96 x 48 mm) |
| Number of digits | 5 |
| Supply voltage AC | 100-240 V |
| Accuracy | +/- 0.5% full scale |
| Sample rate | 20 ms |
| Features | Colour change display |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Front mounting |
| Model (EF000010) | Direct measurement |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Degree of protection (IP), front side (EF003118) | Other |
| Voltage type (supply voltage) (EF002991) | AC |
| Pulse output (EF008838) | None |
| Display (EF000360) | LCD |
| Calibrated (EF008836) | No |
| With communication interface RS-485 (EF007314) | No |
| Pulse counter (EF006559) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Effective power measurement device (EF006561) | No |
| Ampere meter (EF006555) | Yes |
| Supporting protocol for other bus systems (EF003062) | No |
| Harmonics measurement (EF001835) | No |
| Power factor (EF001927) | No |
| With rotational speed meter (EF006557) | No |
| Apparent power (EF001929) | No |
| Step angle (cos phi) (EF001930) | No |
| Suitable for RJ plug (EF008697) | No |
| With communication interface KNX (EF015735) | No |
| Wth communication interface M-Bus (EF016136) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Measurement type load profile (EF008844) | No |
| Reactive power meter (EF006556) | No |
| With firmware signature (EF015392) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| Frequency meter (EF006558) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| Measured value memory (EF000307) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Remote display (EF016138) | No |
| Voltmeter (EF006560) | Yes |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Number of analogue inputs (EF001994) | 1 |
| Number of voltage measurement inputs (EF015385) | 0 |
| Number of digital outputs (EF001993) | 0 |
| Sampling frequency (EF015240) | 50 Hz |
| Number of current measurement inputs (EF015388) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of Ethernet connections (EF004661) | 0 |
| Width (EF000008) | 96 mm |
| Number of digital inputs (EF001992) | 1 |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 112 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Connectable conductor cross section solid-core (EF007337) | 0.08 mm² |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
