K3HB-SSD 24VAC/DC K3HB1002M K3HBSSDACDC24 OMRON Digital meter panel, sensor, linear, 24 VAC/DC

K3HB-SSD 24VAC/DC

K3HB1002M

K3HBSSDACDC24

OMRON

1 Pcs.

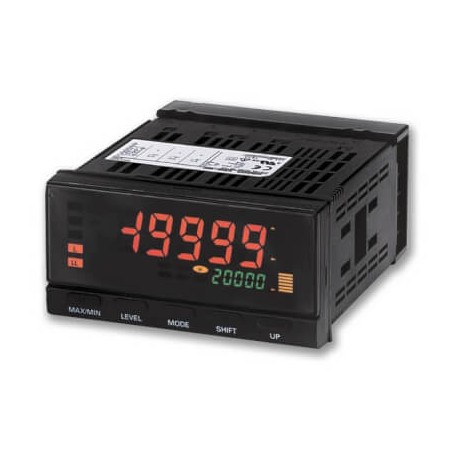

Digital meter panel, sensor, linear, 24 VAC/DC Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Linear sensor/transducor Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Linear sensor/transducor input, DC process inputs scaled 0 to 5v, 1 to 5V, -5 to +5V, -10 to +10V, 0 to 20mA or 4 to 20mA 24 VAC

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron digital panel meter for linear sensors (K3HB-SSD 24VAC/DC) is engineered to accept standard industrial signals and display proportional engineering values on machine control interfaces. These instruments feature multi-color display options to alert operators when monitored variables exceed safe operational limits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Linear sensor
  • Input type: DC current, DC voltage
  • Input range: -10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Size: 1/8 DIN (96 x 48 mm)
  • Number of digits: 5
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage/DC: 20.4-26.4 V
  • Accuracy: +/- 0.1% full scale
  • Sample rate: 0.5 ms
  • Features: Colour change display
  • Product Width (unpacked): 96 mm
  • Product Height (unpacked): 48 mm
  • Product Depth (unpacked): 95 mm
  • Mounting method (EF000003): Front mounting
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Display (EF000360): LCD

More info

▲

Specifications

TypeLinear sensor
Input typeDC current, DC voltage
Input range-10 to 10 V, -5 to 5 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Size1/8 DIN (96 x 48 mm)
Number of digits5
Output typeNone
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Accuracy+/- 0.1% full scale
Sample rate0.5 ms
Communication port(s)None
FeaturesColour change display
Product Width (unpacked)96 mm
Product Height (unpacked)48 mm
Product Depth (unpacked)95 mm

Accessories

K33-Aoption board (Slot B), not compatible with K3N models, 12 VDC 80mA sensor power supply , not suitable for K3HB-V models
K33-CPAoption board (Slot B), not compatible with K3N models, 1 relay (PASS) SPDT and 12 VDC 80mA sensor power supply
K33-FLK3Aoption board (Slot B), not compatible with K3N models, Communications RS-485 and 10 VDC 100mA sensor power supply
K33-L1Aoption board (Slot B), not compatible with K3N models, Linear DC (0)4-20mA Output and 12 VDC 80mA sensor power supply
K33-L2Aoption board (Slot B), not compatible with K3N models, Linear DC(0)1-5V or 0 to 10V Output and 12 VDC 80mA sensor power supply
K34-C1option board (Slot C), not compatible with K3N models, 2 relays (High/Low) SPDT for each relay
K34-C2option board (Slot C), not compatible with K3N models, 4 relays (HH/H/L/LL) SPNO for each relay
K34-T1option board (Slot C), not compatible with K3N models, 5 NPN open collector output (HH/H/PASS/L/LL)
K35-1option board (Slot D), not compatible with K3N models, NPN open collecor event input card 5 points M3 terminal block
K35-3option board (Slot D), not compatible with K3N models, PNP open collecor event input card 5 points M3 terminal block
Y92A-49NWatertight cover for DIN48x96mm device, IP66, plastic

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
