> OMRON > Panel Indicators > K3HB > K3HB4001H

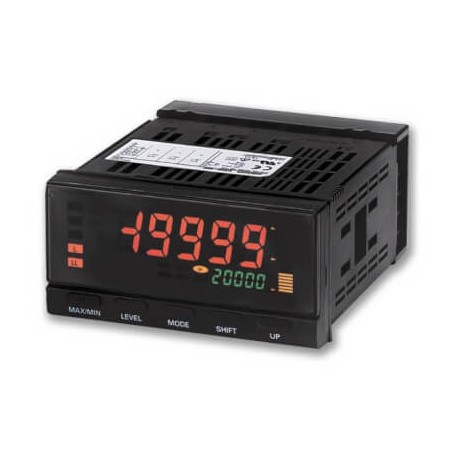

OMRON K3HB-HTA 100-240VAC K3HB-HTA 100-240VAC K3HB4001H K3HBHTA100240VAC OMRON Temperature 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3HB-HTA 100-240VAC K3HB4001H K3HBHTA100240VAC OMRON Temperature 48x96

K3HB-HTA 100-240VAC

K3HB4001H

K3HBHTA100240VAC

OMRON

1 Pcs.

Temperature 48x96 Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Temperature sensor input Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Temperature sensor inputS , PT100,K, J, T, E, L, U, N, R, S, B, W, 100-240 VAC supply

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The K3HB-HTA 100-240VAC Omron digital panel meter is designed to accept temperature sensor inputs and provide accurate thermal readouts in industrial heating and cooling applications. Precision temperature meters protect equipment by maintaining strict thermal thresholds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Front mounting
  • Model (EF000010): Direct measurement
  • Voltage type (supply voltage) (EF002991): AC
  • Display (EF000360): LCD
  • Calibrated (EF008836): No
  • With communication interface RS-485 (EF007314): No
  • Pulse counter (EF006559): No
  • Supporting protocol for PROFIBUS (EF003052): No
  • Effective power measurement device (EF006561): No
  • Ampere meter (EF006555): No
  • Supporting protocol for other bus systems (EF003062): No
  • Harmonics measurement (EF001835): No
  • Power factor (EF001927): No
  • With rotational speed meter (EF006557): No
  • Apparent power (EF001929): No
  • Step angle (cos phi) (EF001930): No

More info

▲
TypeTemperatureInput range-200° to 2300° CSize1/8 DIN (96 x 48 mm)Number of digits5Output typeNoneSupply voltage AC100-240 VAccuracy+/- 0.2% full scaleSample rate20 msCommunication port(s)NoneFeaturesColour change displayProduct Width (unpacked)96 mmProduct Height (unpacked)48 mmProduct Depth (unpacked)95 mmTemperature input typeB, C (WRe5-26), E, J, K, L, N, Pt100, R, S, T, U
