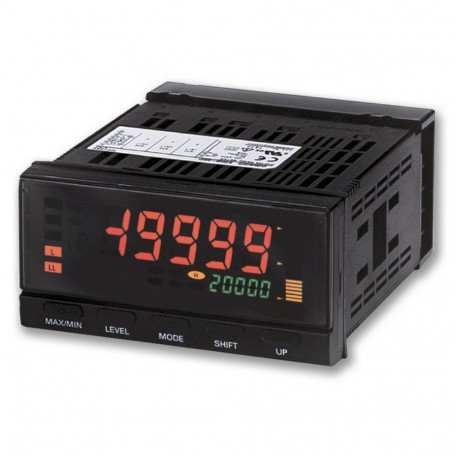

OMRON K3HB-CPB 24VAC/VDC K3HB-CPB 24VAC/VDC K3HB7022G K3HBCPB24VACVDC OMRON Digital meter panel, counts pulses Up/Down PNP 24VAC/VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3HB-CPB 24VAC/VDC K3HB7022G K3HBCPB24VACVDC OMRON Digital meter panel, counts pulses Up/Down PNP 24VAC/VDC

K3HB-CPB 24VAC/VDC

K3HB7022G

K3HBCPB24VACVDC

OMRON

1 Pcs.

Digital meter panel, counts pulses Up/Down PNP 24VAC/VDC Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Up/Down counting pulse, Digital panel meter, DIN1/8 (48(h) x 96(w)), 2 line display with dual color change for actual value, output and option slots, Up/Down counting pulse, 30Hz to 50kHz No voltage, voltage or PNP open collector, 24 VAC/VDC supply

Automation > Multifunction measuring instrument
K3HB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Digital panel meters such as the Omron K3HB-CPB 24VAC/VDC are configured to count and display up/down pulse signals in industrial counting applications. Maintenance teams rely on them for precise production quantity and rate monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Up/down counting
  • Input type: PNP
  • Input range: 0 to 30 Hz, 0 to 50 kHz
  • Size: 1/8 DIN (96 x 48 mm)
  • Number of digits: 5
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Sample rate: 10 ms
  • Features: Colour change display

More info

▲

Specifications

TypeUp/down counting
Input typePNP
Input range0 to 30 Hz, 0 to 50 kHz
Size1/8 DIN (96 x 48 mm)
Number of digits5
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Sample rate10 ms
FeaturesColour change display
