View larger
Images are for illustrative purposes only. Please refer to data sheet for details

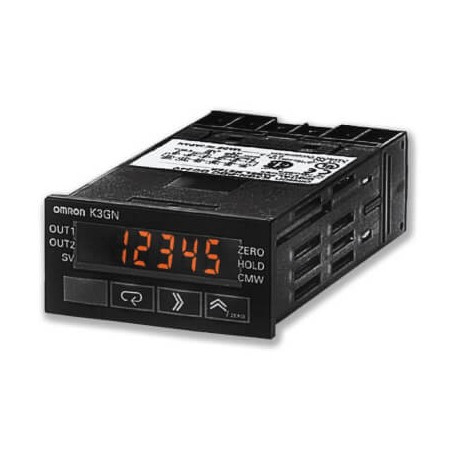

K3GN-PDT2 24VDC K3GN1104B K3GNPDT224VDC OMRON Analogy Voltage/Current DC PNP 3TRT PNP
K3GN-PDT2 24VDC
K3GN1104B
K3GNPDT224VDC
OMRON
1 Pcs.
Analogy Voltage/Current DC PNP 3TRT PNP
Digital panel meter, DIN 48x24 mm, DC voltage/current + PNP input, 3x PNP transistor outputs, includes color display function
Automation > Multifunction measuring instrument
K3GN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeFrequency, Process, RateInput typeDC current, DC voltage, PNPInput range-10 to 10 V, -5 to 5 V, 1 to 5 V, 4 to 20 mASize1/32 DIN (48 x 24 mm)Number of digits5Output typePNPSupply voltage DC20.4-26.4 VAccuracy+/- 0.1% full scaleSample rate250 msCommunication port(s)NoneFeaturesColour change displayProduct Width (unpacked)48 mmProduct Height (unpacked)24 mmProduct Depth (unpacked)80 mm
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Front mounting |
| Model (EF000010) | Direct measurement |
| Voltage type (supply voltage) (EF002991) | DC |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | Other |
| Accuracy class reactive energy according to IEC 62053-23 (EF015239) | Other |
| Degree of protection (IP), front side (EF003118) | Other |
| Pulse output (EF008838) | None |
| Display (EF000360) | LCD |
| With communication interface RS-485 (EF007314) | No |
| Pulse counter (EF006559) | Yes |
| Effective power measurement device (EF006561) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Harmonics measurement (EF001835) | No |
| Power factor (EF001927) | No |
| With rotational speed meter (EF006557) | No |
| Apparent power (EF001929) | No |
| Step angle (cos phi) (EF001930) | No |
| Suitable for RJ plug (EF008697) | No |
| With communication interface KNX (EF015735) | No |
| Wth communication interface M-Bus (EF016136) | No |
| Measurement type load profile (EF008844) | No |
| With firmware signature (EF015392) | No |
| With audit logging (audit log) (EF015391) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| Frequency meter (EF006558) | No |
| Measured value memory (EF000307) | Yes |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Remote display (EF016138) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Calibrated (EF008836) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Ampere meter (EF006555) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Reactive power meter (EF006556) | No |
| Web server with HTTPS transfer protocol (EF015395) | No |
| Voltmeter (EF006560) | No |
| Number of Ethernet connections (EF004661) | 0 |
| Width (EF000008) | 48 mm |
| Number of digital inputs (EF001992) | 1 |
| Depth (EF000049) | 80 mm |
| Number of analogue inputs (EF001994) | 1 |
| Number of voltage measurement inputs (EF015385) | 1 |
| Number of digital outputs (EF001993) | 3 |
| Sampling frequency (EF015240) | 17250 Hz |
| Number of current measurement inputs (EF015388) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Height (EF000040) | 35 mm |
| Connectable conductor cross section solid-core (EF007337) | 0.08 mm² |
| Supply voltage DC (EF007534) | 20.4 V |
