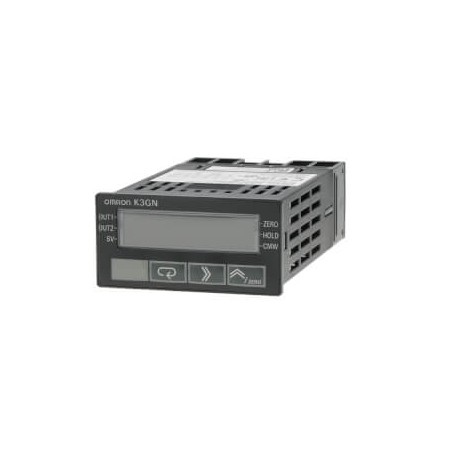

OMRON K3GN-NDC 24VDC K3GN-NDC 24VDC K3GN1101H K3GNNDC24VDC OMRON Analogy Voltage/Current DC NPN 2SPST-NO 24x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K3GN-NDC 24VDC K3GN1101H K3GNNDC24VDC OMRON Analogy Voltage/Current DC NPN 2SPST-NO 24x48

K3GN-NDC 24VDC

K3GN1101H

K3GNNDC24VDC

OMRON

1 Pcs.

Analogy Voltage/Current DC NPN 2SPST-NO 24x48 Digital panel meter, DIN48x24mm, DC voltage/current + NPN input, 2x relay outputs, includes color display function, 24VDC, without data transmission o

Automation > Multifunction measuring instrument
K3GN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as an industrial process indicator, this Omron analogy voltage/current DC NPN 2SPST-NO 24x48 unit measures and displays electrical inputs in automation systems. Panel meters give operators instant visual feedback on critical process variables, helping maintain safe operational thresholds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: K3GN-NDC 24VDC
  • Catalogue code: K3GN1101H
  • Catalogue title: K3GN-NDC 24VDC K3GN1101H K3GNNDC24VDC OMRON Analogy Voltage/Current DC NPN 2SPST-NO 24x48
  • Product description: TypeFrequency, Process, RateInput typeDC current, DC voltage, NPNInput range-10 to 10 V, -5 to 5 V, 1 to 5 V, 4 to 20 mASize1/32 DIN (48 x 24 mm)Number of digits5Output typeRelayContact description2 x SPST-NOSupply volta
  • Manufacturer summary: Analogy Voltage/Current DC NPN 2SPST-NO 24x48 Digital panel meter, DIN48x24mm, DC voltage/current + NPN input, 2x relay outputs, includes color display function, 24VDC, without data transmission o

More info

▲
TypeFrequency, Process, RateInput typeDC current, DC voltage, NPNInput range-10 to 10 V, -5 to 5 V, 1 to 5 V, 4 to 20 mASize1/32 DIN (48 x 24 mm)Number of digits5Output typeRelayContact description2 x SPST-NOSupply voltage DC20.4-26.4 VAccuracy+/- 0.1% full scaleSample rate250 msCommunication port(s)NoneFeaturesColour change displayProduct Width (unpacked)48 mmProduct Height (unpacked)24 mmProduct Depth (unpacked)80 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
