K33-FLK1A K33 1009M K33FLK1A OMRON Card. K3HB Communications RS-232C + Alim sensor 12vdc
K33-FLK1A
K33 1009M
K33FLK1A
OMRON
1 Pcs.
Automation > Accessories/spare parts for measuring instruments for installation
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

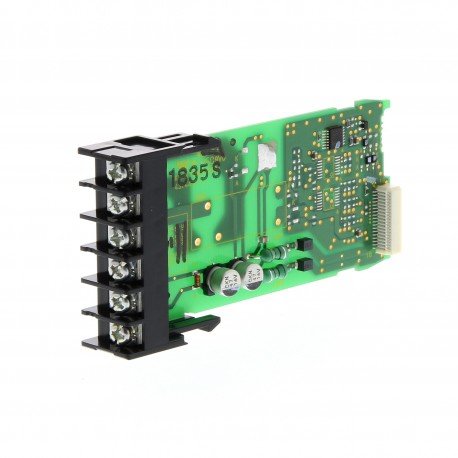

Omron part number K33-FLK1A is a communication and sensor power supply option card designed for K3HB panel meters. Communication expansion cards are commonly incorporated into automation setups to enable remote data exchange, protocol integration, and auxiliary power distribution for connected field instruments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Omron
- Manufacturer part number: K33-FLK1A
- Catalogue code: K33 1009M
- Catalogue title: K33-FLK1A K33 1009M K33FLK1A OMRON Card. K3HB Communications RS-232C + Alim sensor 12vdc
- Product description: K3HB-C, -P, -R1/8 DIN advanced indicators Rotary pulse, timer interval and up/down counting pulse indicators These indicators with analog input feature a clear and easy-to-usecolor change dis- play.All models are equippe
- Manufacturer summary: Card. K3HB Communications RS-232C + Alim sensor 12vdc Card. K3HB Comunic RS-232C + Alim sensor 12Vcc
More info
▲K3HB-C, -P, -R1/8 DIN advanced indicators
Rotary pulse, timer interval and up/down counting pulse indicators
These indicators with analog input feature a clear and easy-to-usecolor change dis- play.All models are equipped with an IP66 housing. K3HB-R and-C arehigh-speed, with a sample rate up to 50 kHz.
• Position meter indication for easy monitoring
• Optional DeviceNet, RS-232C, RS-485
• Double display, with 5 digits, in two colors
• 1/8 DIN sizehousing
Ordering information
Type of indicator Input ranges Supply voltageInput sensor Order code
Rotary pulse indicator K3HB-R No voltage contact: 30 Hz max.100 to 240 VACNPN input/voltage pulse K3HB-RNB 100-240VAC
Voltage pulse: 50 kHz max. Open collector: 50 kHz max.
24 VAC/VDC K3HB-RNB 24VAC/VDC
100 to 240 VACPNP inputK3HB-RPB 100-240VAC
24 VAC/VDC K3HB-RPB 24VAC/VDC
100 to 240 VAC NPNK3HB-PNB 100-240VAC
100 to 240 VACPNPK3HB-PPB 100-240VAC
Timer interval indicator K3HB-P 24 VAC/VDC PNPK3HB-PPB 24VAC/VDC
100 to 240VACNPNK3HB-CNB 100-240VAC Up/down counting pulse indicator K3HB-C 24 VAC/VDC NPNK3HB-CNB 24VAC/VDC
24 VAC/VDC PNPK3HB-CPB 24VAC/VDC
Option boards
Sensor power supply/output boards
SlotOutputSensor power supplyCommunicationsOrder code
B RelayPASS: SPDT 12 VDC ±10%, 80 mA– K33-CPA *1
Linear currentDC0(4) - 20 mA – K33-L1 A *2
Linear voltage DC0(1) - 5 V, 0 to 10 V– K33-L2A *2
– – – K33-A *2
– – RS-232CK33-FLK1 A *2
– – RS-485 K33-FLK3A *2
Relay/transistor output boards
SlotOutputCommunicationsOrder code
C RelayH/L: SPDT each– K34-C1
HH/H/LL/L: SPST-NO each– K34-C2
TransistorNPN open collector: HH/H/PASS/L/LL– K34-T1
PNP open collector: HH/H/PASS/L/LL– K34-T2
– DeviceNet K34-DRT *2
BCD + transistor NPN open collector: HH/H/PASS/L/LL– K34-BCD
Event input boards
SlotInput type Number of points CommunicationsOrder code
DNPN open collector 5 M3 terminal blocks K35-1
8 10-pin MIL connectorK35-2
PNP open collector 5 M3 terminal blocks K35-3
8 10-pin MIL connectorK35-4
*1CPA can be combined with relay outputs only.
*2Only one of the following can be used by each digital indicator:RS-232C/RS-485 communications, a linear output, or DeviceNet communications.
K3HB has got three slots for option boards: Slot B, slot C and slot D.
Accessories
Type Order code Special cable (for event inputs with 8-pin connector) K32-DICN Special BCD output cable K32-BCD
590
K3HB-C, -P, -R1/8 DIN advanced indicators
Specifications
Power supply voltage100 to 240VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC
Allowable power supply voltage range 85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
Power consumption100 to 240V: 18VA max.(max.load),24 VAC/DC: 11 VA/7 W max. (max. load)
Display method Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2mm (green/red) SV: 4.9 mm (green))
Ambient operating temperature –10 to 55°C (with no icing or condensation)
Display range–19,999 to 99,999
WeightApprox. 300 g (base unit only)
Degree of protectionFront-panelConforms to NEMA 4X for indoor use (equivalent to IP66)
Rear caseIP20
Terminals IP00 + finger protection (VDE0106/100)
Memory protection EEPROM (non-volatile memory), number of rewrites: 100,000
Event input ratingsContact ON: 1 k max., OFF: 100 k min.
No-contact ON residualvoltage:2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.
Output ratings Transistor output Maximum load voltage24 VDC Maximum load current 50 mA Leakage current 100 μA max.
Contact output
(resistive load)
Rated load5 A at 250VAC, 5 A at 30 VDC
Rated through current 5 A
Mechanical life expectancy5,000,000 operations
Electrical life expectancy100,000 operations
Linear output Allowable load impedance 500 max. (mA) 5 k min. (V)
Resolution Approx. 10,000
Output error ±0.5% FS
Size in mm (H×W×D) 48×96×100
