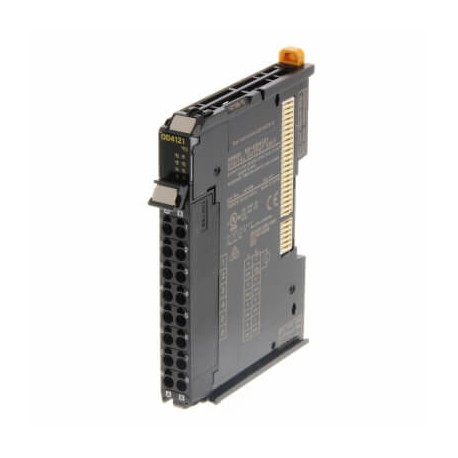

OMRON NX-OD4121 NX-OD4121 NX020014C NXOD4121 OMRON Unit NX 8 Outputs NPN Standard View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD4121 NX020014C NXOD4121 OMRON Unit NX 8 Outputs NPN Standard

NX-OD4121

NX020014C

NXOD4121

OMRON

1 Pcs.

Unit NX - 8 Outputs NPN Standard 8 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX-OD4121 transistor output unit delivers precise switching signals for modern machine automation and process control applications. Digital output units are routinely implemented within PLC racks to drive pneumatic valves, indicators, and smaller DC actuators based on program instructions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.1-0.8 msNumber of digital outputs8Digital output typeNPNPermitted voltage at output10.2-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method2-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals8Number of IOG (V-) terminals0Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)95 g
