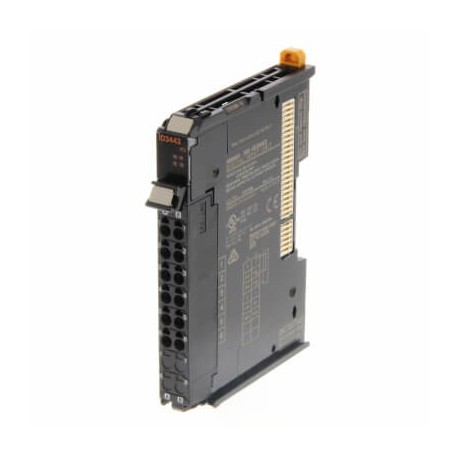

OMRON NX-ID3443 NX-ID3443 NX020080A NXID3443 OMRON Unit NX 4 PNP Inputs High-Speed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID3443 NX020080A NXID3443 OMRON Unit NX 4 PNP Inputs High-Speed

NX-ID3443

NX020080A

NXID3443

OMRON

1 Pcs.

Unit NX - 4 PNP Inputs High-Speed 4 Digital Inputs, High speed, PNP 24 VDC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for high-speed signal processing, the Omron NX-ID3443 Unit NX 4 PNP Inputs High-Speed collects discrete input data from machine sensors. Input units of this classification are essential for monitoring industrial processes and providing rapid feedback to automation controllers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typePNPPermitted voltage at input15-28.8 VOFF/ON delay0-0.0001 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingFree running, High speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g
