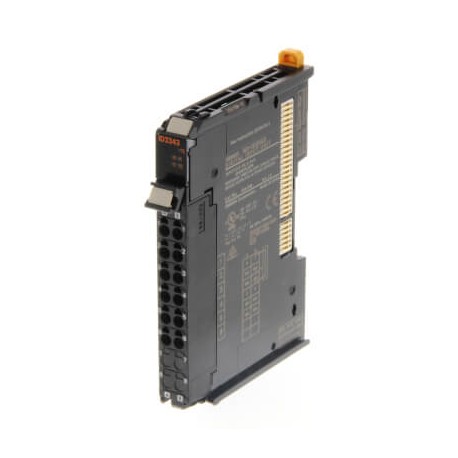

OMRON NX-ID3343 NX-ID3343 NX020007M NXID3343 OMRON Unit NX 4 Inputs NPN High Speed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID3343 NX020007M NXID3343 OMRON Unit NX 4 Inputs NPN High Speed

NX-ID3343

NX020007M

NXID3343

OMRON

1 Pcs.

Unit NX - 4 Inputs NPN High Speed 4 Digital Inputs, High speed, NPN 24 VDC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX-ID3343 high-speed digital input module processes rapid sensor signals within modular PLC systems to ensure precise timing control. High-speed input cards are crucial in automated sorting and packaging machinery where event timing is paramount. Quotations detailing unit pricing, inventory status, and delivery lead times are provided via an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: NX-ID3343
  • Catalogue code: NX020007M
  • Catalogue title: NX-ID3343 NX020007M NXID3343 OMRON Unit NX 4 Inputs NPN High Speed
  • Product description: I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typeNPNPermitted voltage at input15-28.8 VOFF/ON delay0-0.0001 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort
  • Manufacturer summary: Unit NX - 4 Inputs NPN High Speed 4 Digital Inputs, High speed, NPN 24 VDC, screwless push-in connector, 12 mm wide

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typeNPNPermitted voltage at input15-28.8 VOFF/ON delay0-0.0001 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingFree running, High speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
