OMRON DF-LDL2-33X8 DF-LDL2-33X8 AA052890F DFLDL233X8,1 OMRON Diffusion plate for LDL2-33X8

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

DF-LDL2-33X8 AA052890F DFLDL233X8,1 OMRON Diffusion plate for LDL2-33X8

Name: DF-LDL2-33X8 AA052890F DFLDL233X8,1 OMRON Diffusion plate for LDL2-33X8
Brand: OMRON
SKU: AA052890F

Reference: DF-LDL2-33X8

Code: AA052890F

Catalog Number: DFLDL233X8.1

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Diffusion plate for LDL2-33X8

Categories:
Automation > Accessories/spare parts for sensor technology
Special

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Features

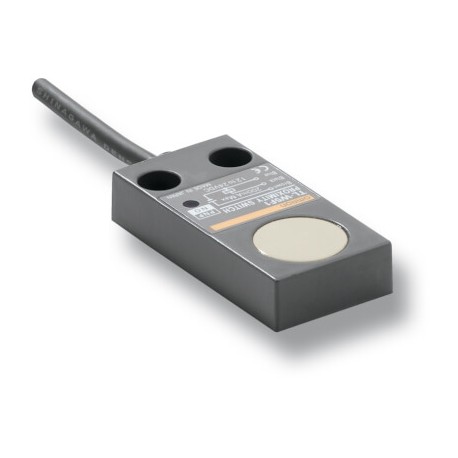

Flat shape inductive sensor in compact plastic housing

The TL-W family offers a wide range of block style inductive sensors for simple mounting on flat surfaces. With sensing distances from 1.5 mm to 20 mm the TL-W is the ideal solution for all standard applications.

Front and side facing surface
IP67
DC 2-wire and DC 3-wire models
Sensing distances from 1.5 mm to 20 mm

Ordering information

DC 2-wire

Size in mm

(H × W × D)

Sensing distance

Order code (for pre-wired types with 2 m PVC cable)

Operation mode normally open (NO)

Operation mode normally closed (NC)

31 × 18 × 10

5 mm

TL-W5MD1

TL-W5MD2

DC 3-wire

Size in mm (H × W × D)			Sensing distance	Order code (for pre-wired types with 2 m PVC cable)
Size in mm (H × W × D)			Sensing distance	PNP-NO	PNP-NC	NPN-NO	NPN-NC
25 × 8 × 5	-	¢	1.5 mm	TL-W1R5MB1	-	TL-W1R5MC1	-
22 × 8 × 6			3 mm	TL-W3MB1	TL-W3MB2	TL-W3MC1	TL-W3MC2
31 × 18 × 10			5 mm	TL-W5MB1	TL-W5MB2	TL-W5MC1	TL-W5MC2
53 × 40 × 23			20 mm	-	-	TL-W20ME1	TL-W20ME2
31 × 18 × 10	¢	-	5 mm	TL-W5F1	TL-W5F2	TL-W5E1	TL-W5E2

Specifications

Item		TL-W5MD_	TL-W1R5M_1	TL-W3M__	TL-W5M__	TL-W5E_/F_	TL-W20ME_
Sensing distance		5 mm±10%	1.5 mm±10%	3 mm±10%	5 mm±10%		20 mm±10%
Response frequency		500 Hz	1 kHz min.	600 Hz min.	500 Hz min.	300 Hz min.	40 Hz min.
Power supply voltage (operating voltage)		12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.				10 to 30 VDC with a ripple (p-p) of 20% max.	12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.
Protective circuits		Surge absorber; short- circuit protection	Surge suppressor; power supply reverse polarity protection
Ambient temperature	Operating	-25 to 70°C (with no icing or condensation)
Ambient temperature	Storage	-25 to 70°C (with no icing or condensation)
Degree of protection		IEC60529 IP67
Material	Case	Heat-resistant ABS resin				Diecast aluminum	Heat-resistant ABS resin
Material	Sensing surface	Heat-resistant ABS resin
