DCA1-5CN03F1 DCA10011H DCA15CN03F1 OMRON Cable IP67 3m Female Connector and tips
DCA1-5CN03F1
DCA10011H
DCA15CN03F1
OMRON
1 Pcs.
Automation > Telecommunications patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

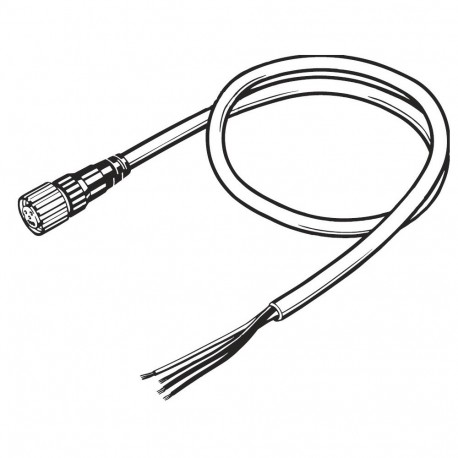

Omron DCA1-5CN03F1 is a 3-meter IP67 field bus cable equipped with a female connector and wire tips, designed for connecting sensors and actuators in harsh industrial layouts. Prefabricated connection lines prevent signal attenuation and reduce installation time across automated assembly lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 4-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 11 mA, with power short-circuit and sensor disconnection detection
- 16-point PNP input unit: 24 V, 6 mA, 2 inputs per M12 connector
- 4-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication
- 16-point PNP output unit: 24 V, 0.5 A per point, 2 points per M12 connector
- 8-point input + 8-point PNP output unit: 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector
- DeviceNet thin cable: with one M12 socket connector (female), 1 m
- DeviceNet thin cable: with one M12 socket connector (female), 2 m
- DeviceNet thin cable: with one M12 socket connector (female), 5 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 1 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 2 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 5 m
- DeviceNet T-connector for thin cable: with two M12 socket connectors (female) + one M12 plug connector (male)
More info
▲- IP67 protection, DRT2 versions are also oil- and welding-spatter proof
- Internal circuits powered by DeviceNet; fewer connections means less installation errors
- Smart Slave functions for diagnostics and preventive maintenance
- Indication of broken wire and short-circuit in I/O signals
- M12 connectors for fast installation
Specifications & ordering info
Ordering information
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
