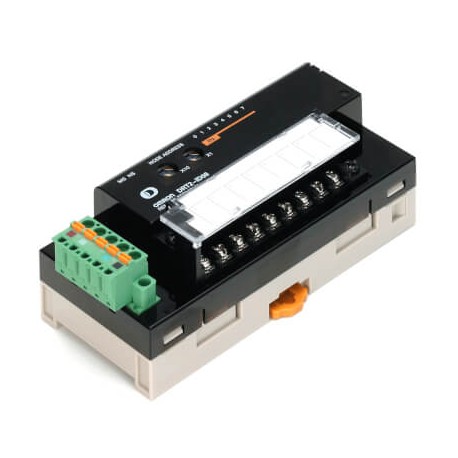

OMRON DRT2-ID08-1 DRT2-ID08-1 DRT27012E DRT2ID081 OMRON Module 8 PNP Inputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRT2-ID08-1 DRT27012E DRT2ID081 OMRON Module 8 PNP Inputs

DRT2-ID08-1

DRT27012E

DRT2ID081

OMRON

1 Pcs.

Module 8 PNP Inputs DeviceNet digital input unit, 8 x inputs, 24 VDC, PNP, screw terminal block

Automation > Fieldbus, decentr. periphery - digital I/O module
DRT (Devicenet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron DRT2-ID08-1 digital I/O module serves as a slave device on DeviceNet networks, collecting discrete PNP sensor signals from the plant floor and relaying them to the master controller. Digital input blocks are fundamental for monitoring status flags, limit switches, and photoelectric sensors across automated processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Communication port(s): DeviceNet Slave
  • Type of module: Digital I/O
  • I/O connection type: Screw
  • Connection method: 1-wire
  • Number of digital inputs: 8
  • Digital input type: PNP
  • Permitted voltage at input: 0-26.4 V
  • Number of digital outputs: 0
  • Degree of protection (IP): IP20
  • Height: 50 mm
  • Width: 115 mm
  • Depth: 49.6 mm
  • Weight: 200 g
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC

More info

▲

Specifications

Communication port(s)DeviceNet Slave
Type of moduleDigital I/O
I/O connection typeScrew
Connection method1-wire
Number of digital inputs8
Digital input typePNP
Permitted voltage at input0-26.4 V
Number of digital outputs0
Digital output typeNone
Short-circuit protected outputs
I/O systemNone
Degree of protection (IP)IP20
Height50 mm
Width115 mm
Depth49.6 mm
Weight200 g

Accessories

DCN1-1CDeviceNet T-branch tap for 1 branch line, 3 connectors with screws, side cable entry
DCN1-1NCDeviceNet T-Branch tap for 1 branch line, 3 parallel clamp connectors, top cable entry
DCN1-1PDeviceNet power supply tap with 2 connectors, standard terminating resistor, and fuse
DCN1-3CDeviceNet T-branch tap for 3 branch lines, 5 connectors with screws, side cable entry
DCN1-3NCDeviceNet T-Branch tap for 3 branch lines, 5 parallel clamp connectors, top cable entry
DRS1-TCompoNet/DeviceNet termination terminal block
XW4B-05C4-TF-DDeviceNet multi-branching connector, parallel with screws, connector insertion and wiring in same direction.
XW4G-05C4-TF-DDeviceNet connector, multi-branch parallel screwless, connector insertion and wiring in same direction.
