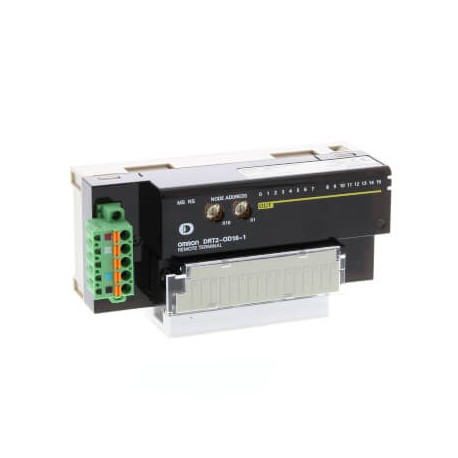

OMRON DRT2-OD16-1 DRT2-OD16-1 DRT27008G DRT2OD161CHN OMRON Module 16 PNP outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRT2-OD16-1 DRT27008G DRT2OD161CHN OMRON Module 16 PNP outputs

DRT2-OD16-1

DRT27008G

DRT2OD161CHN

OMRON

1 Pcs.

Module 16 PNP outputs DeviceNet digital output unit, 16 x transistor outputs 0.5 A, 24 VDC, PNP, screw terminal block

Automation > Fieldbus, decentr. periphery - digital I/O module
DRT (Devicenet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron DRT2-OD16-1 module acts as a dependable node interface designed to handle multiple switching signals within automated manufacturing networks. Signal distribution modules of this type link field actuators to the master controller, streamlining wiring and maintenance tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
Communication port(s)DeviceNet SlaveType of moduleDigital I/OI/O connection typeScrewConnection method1-wireNumber of digital inputs0Digital input typeNoneNumber of digital outputs16Digital output typePNPPermitted voltage at output0-26.4 VOutput current0.5 AShort-circuit protected outputsI/O systemI/O Expansion LinkDegree of protection (IP)IP20Product Height (unpacked)50 mmProduct Width (unpacked)115 mmProduct Depth (unpacked)49.7 mmProduct Weight (unpacked)200 g
